煤层水平井中随钻电磁波仪器影响因素分析及电阻率模拟计算

陈刚; 张冀冠; 李泉新; 刘志毅

doi:10.12363/issn.1001-1986.21.10.0595

煤层水平井中随钻电磁波仪器影响因素分析及电阻率模拟计算

doi: 10.12363/issn.1001-1986.21.10.0595

陈刚^{1, 2,},
张冀冠²,
李泉新²,
刘志毅¹

基金项目: 陕西省重点研发计划项目(2020GY-089)；国家自然科学基金项目(42102350)；中煤科工集团西安研究院顶层设计项目(2020XAYDC01)

详细信息

第一作者:
陈刚，1986年生，男，山西大同人，博士后，副研究员，从事地球物理测井工作. E-mail：chengang@cctegxian.com

中图分类号: P631
计量
- 文章访问数: 280
- HTML全文浏览量: 12
- PDF下载量: 43
- 被引次数: 0
出版历程
- 收稿日期: 2021-10-29
- 修回日期: 2021-12-27
- 发布日期: 2022-02-01
- 网络出版日期: 2022-01-27

Influential factors of the electromagnetic wave instrument while drilling in coal seam horizontal wells and resistivity simulation calculation

摘要

摘要: 为掌握煤层水平井中随钻电磁波仪器探测影响因素，通过有限元数值模拟研究顶底板围岩电阻率、仪器偏心、煤层井眼垮塌和煤层厚度等因素对电阻率测量值的影响，分析高阻煤岩地层条件下幅度比和相位差计算的电阻率响应规律。在此基础上，建立三层地质数学模型，模拟不同发射频率情况下随钻电磁波仪器钻进煤层时，幅度比和相位差电阻率计算解析解和数值解的差异，以及煤层相对介电常数对幅度比和相位差计算的影响。模拟结果表明：幅度比和相位差计算的电阻率解析解和数值解符合度很高，但当电阻率大于100 Ω·m时，幅度比电阻率已经不能反映煤层的真实电阻率，所以在实际处理解释过程中用相位差电阻率要好些；高阻煤层不同发射频率情况下，电阻率数据主要对煤层电阻率敏感，对介电常数不敏感，只有在超高频时，介电常数才会对电磁波传播造成较大影响。
- 随钻电磁波仪器 /
- 有限元模拟 /
- 电阻率计算 /
- 煤层水平孔
Abstract: In order to figure out the influential factors of the detection by the electromagnetic wave instrument while drilling in coal seam horizontal wells, we studied the impacts of roof and floor surrounding rock resistivity, instrument eccentricity, coal seam borehole collapse and coal seam thickness on the measurement of resistivity through finite element numerical simulation. The resistivity response law of the amplitude ratio and phase difference calculation under the condition of high-resistivity coal rock formation was analyzed. On this basis, a three-layer geological mathematical model was established to simulate the difference between analytical and numerical solutions of the amplitude ratio and phase difference resistivity when the electromagnetic wave instrument while drilling was drilling in the coal seam at different emission frequencies, as well as the influence of formation relative dielectric constant on the amplitude ratio and phase difference calculation. The simulation results show that the analytical and numerical solutions of resistivity calculated by the amplitude ratio and phase difference are in good agreement, but when the resistivity is greater than 100 Ω·m, the amplitude ratio resistivity could not reflect the real resistivity of the coal seam, so it is better to use phase difference resistivity in the actual processing and interpretation. At different emission frequencies of high-resistivity coal seams, the resistivity data are mainly sensitive to the formation resistivity and insensitive to the dielectric constant. Only at ultra-high frequencies, the dielectric constant will have a great impact on the propagation of the electromagnetic wave.
- electromagnetic wave instrument while drilling /
- finite element simulation /
- resistivity calculation /
- coal seam horizontal hole

HTML全文

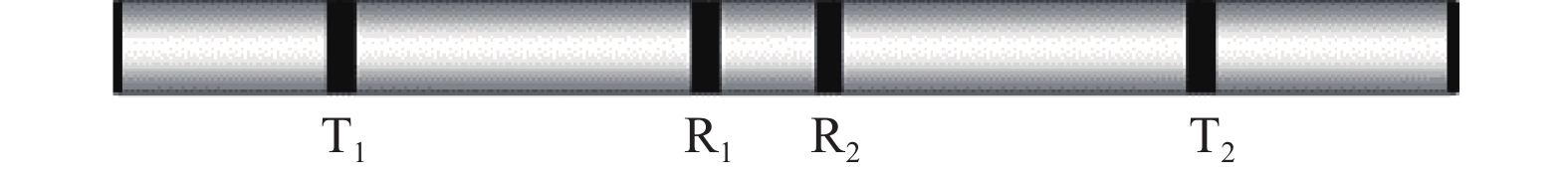

图 1 双发双收随钻电磁波测井仪器结构

Fig. 1 Structure diagram of the two-generator and two-receiver electromagnetic wave logging tool while drilling

下载: 全尺寸图片幻灯片

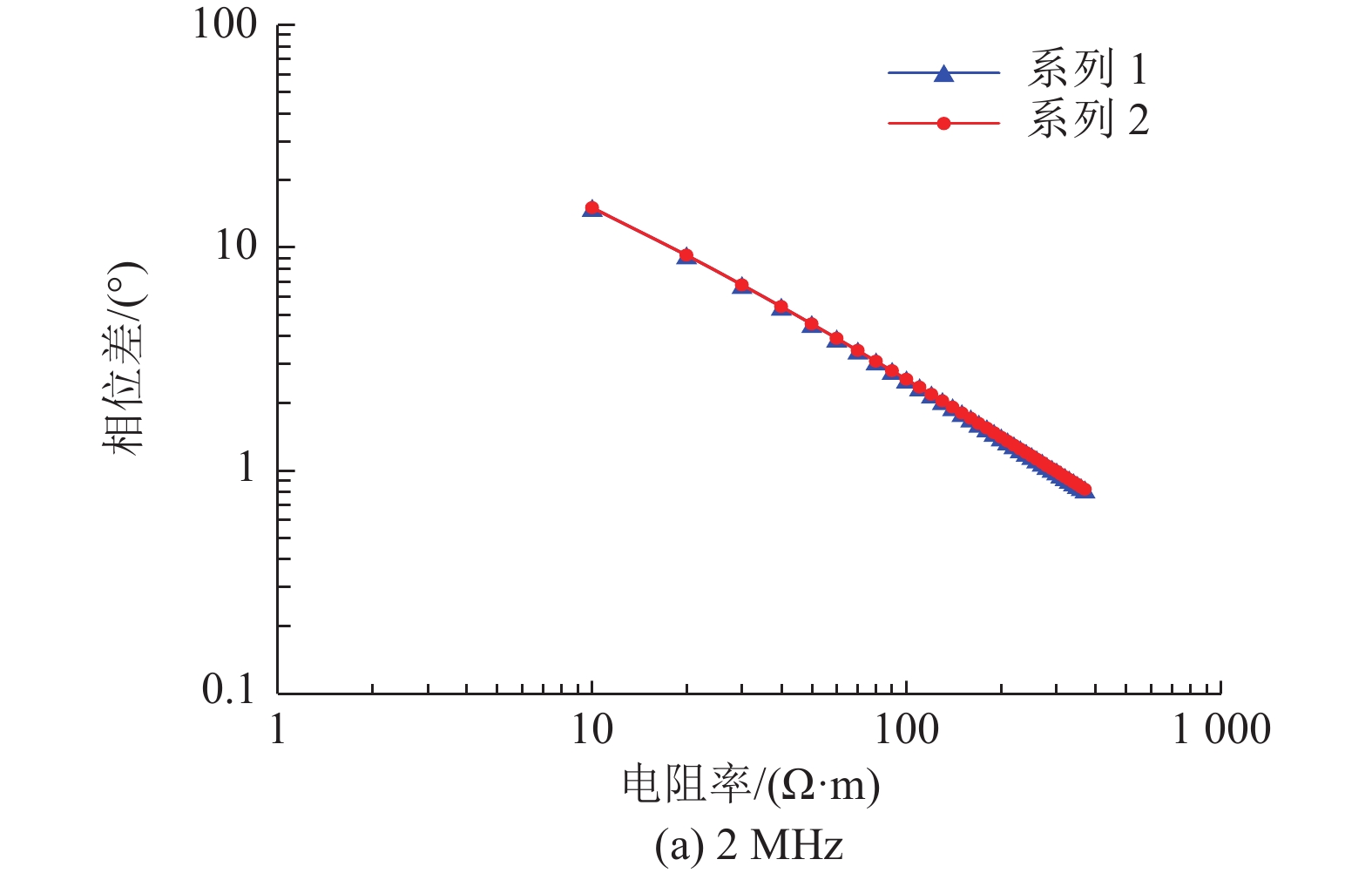

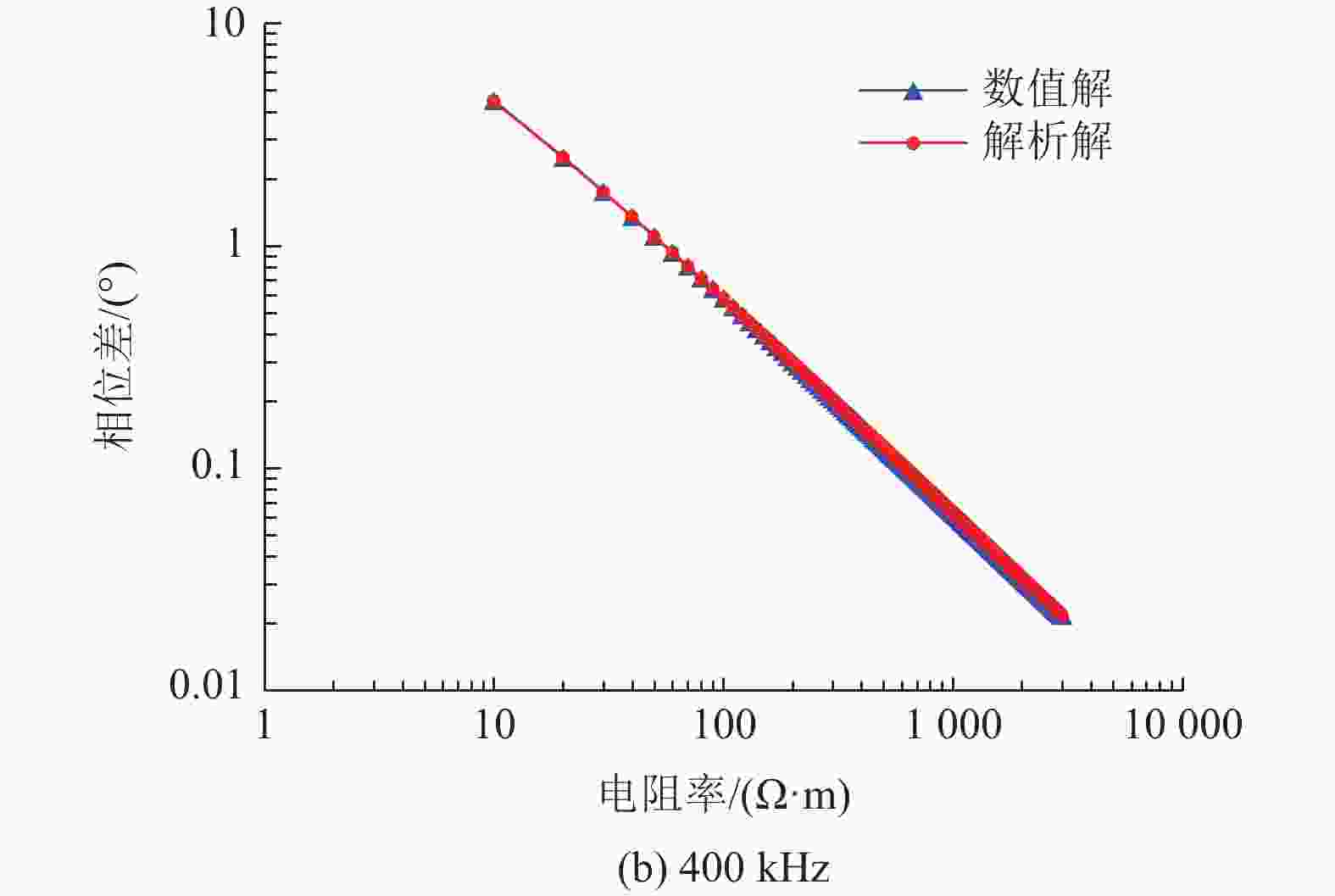

图 2 相位差解析解和数值解对比

Fig. 2 Comparison between analytical and numerical solutions of phase difference

下载: 全尺寸图片幻灯片

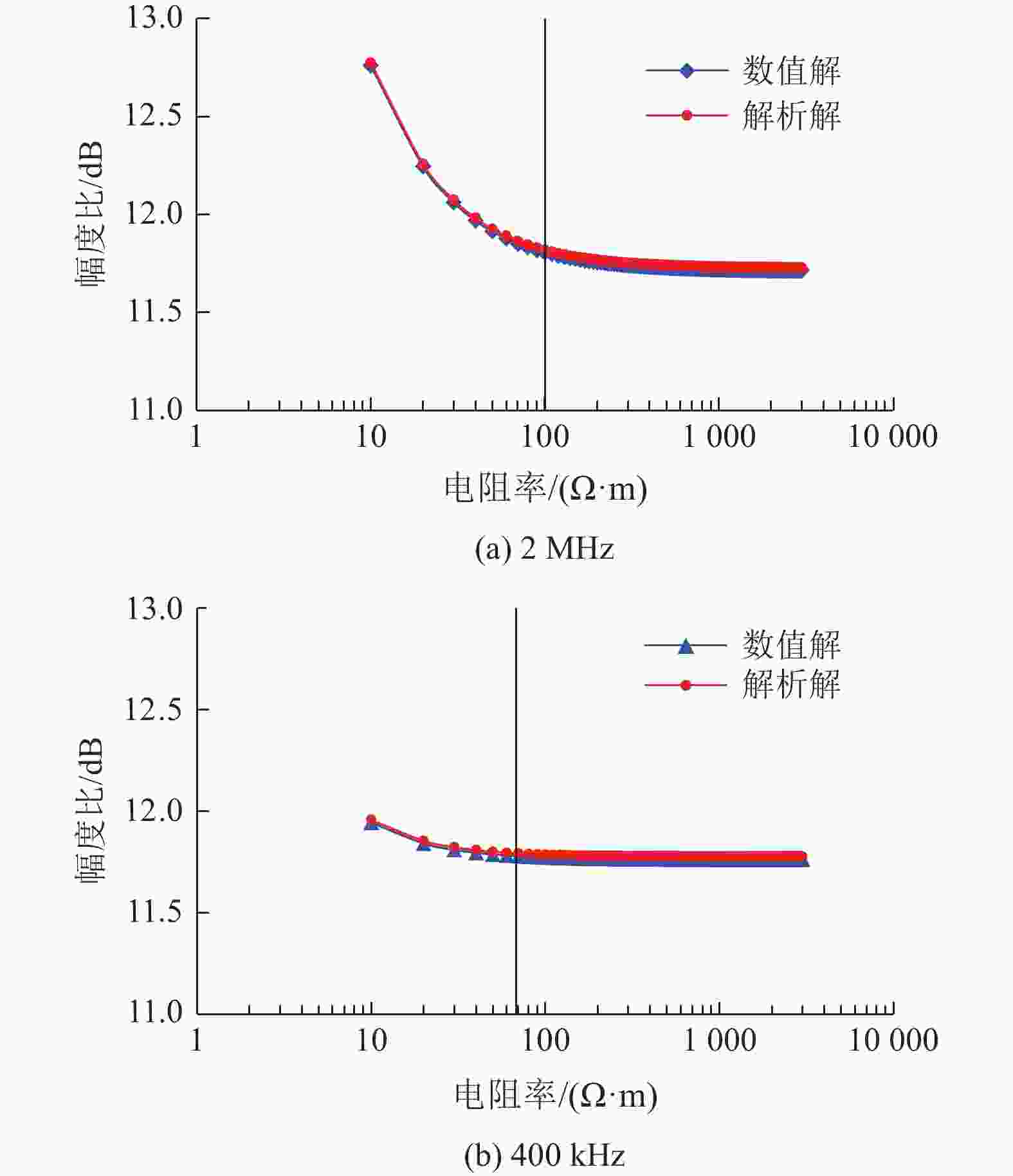

图 3 幅度比解析解和数值解对比

Fig. 3 Comparison between the analytical solution and numerical solution of the amplitude ratio

下载: 全尺寸图片幻灯片

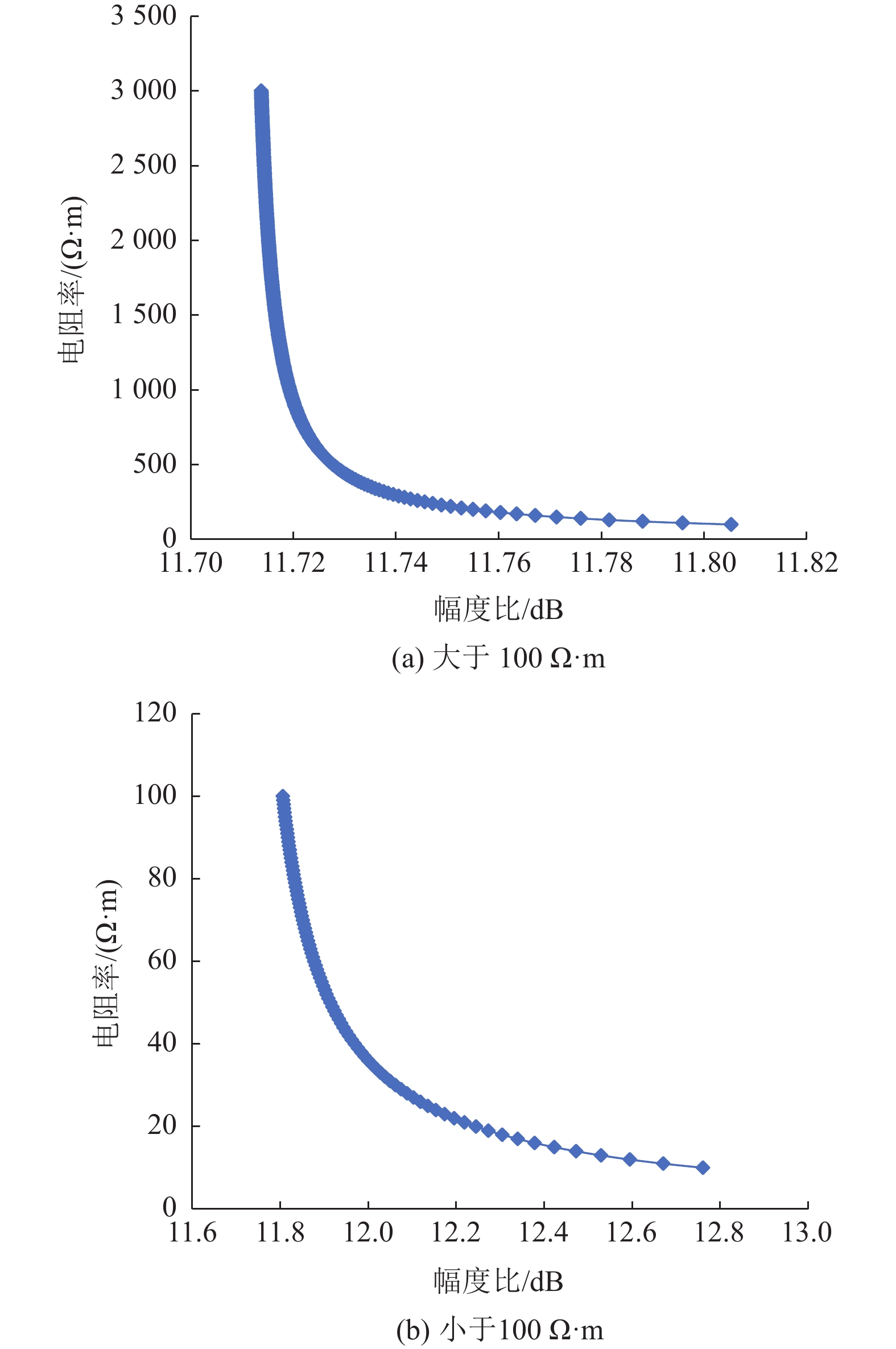

图 4 2 MHz幅度比刻度视电阻率曲线线性插值

Fig. 4 Linear interpolation diagram of the 2 MHz amplitude ratio scale apparent resistivity curve

下载: 全尺寸图片幻灯片

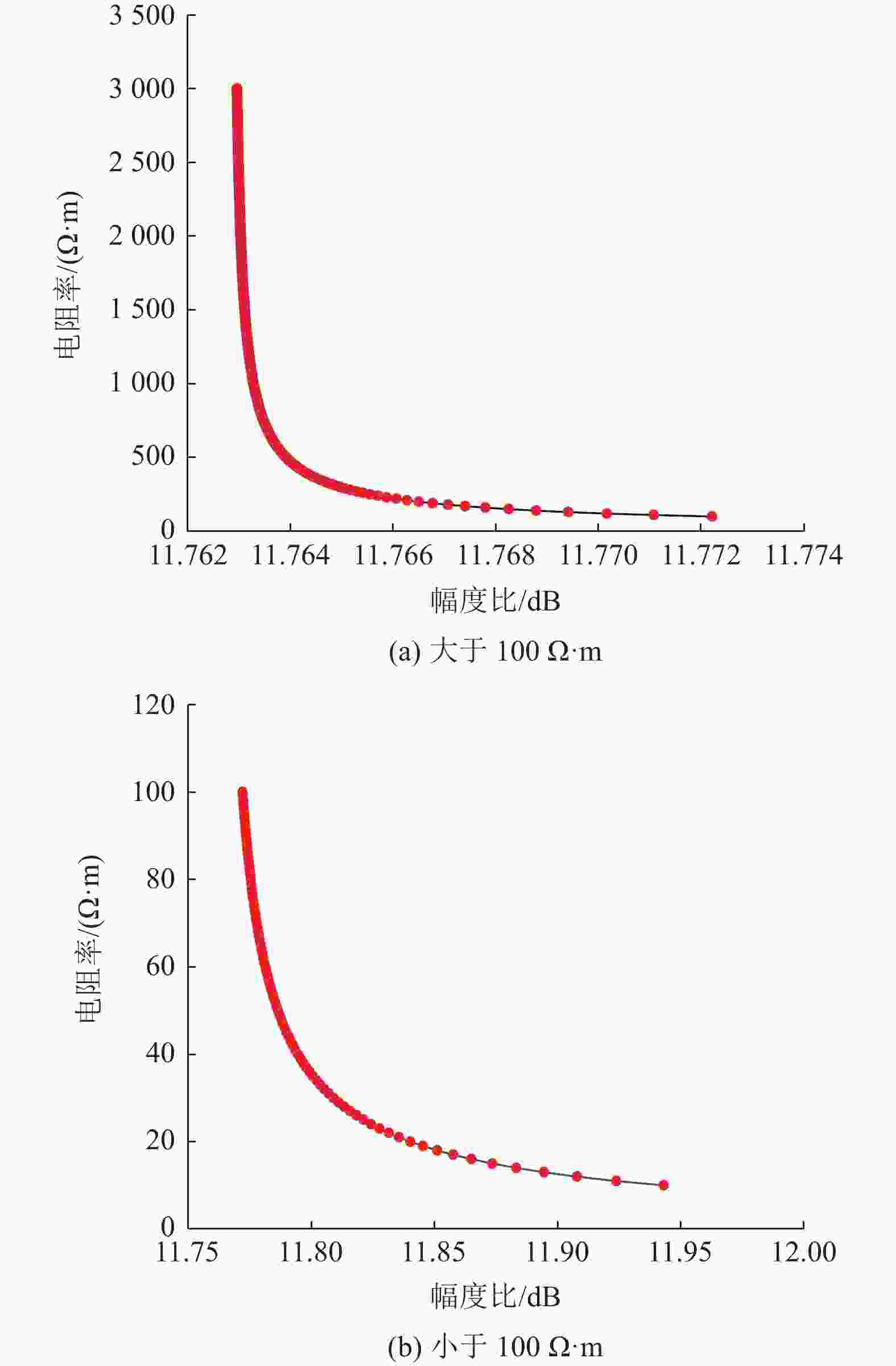

图 5 400 kHz幅度比刻度视电阻率曲线线性插值

Fig. 5 Linear interpolation diagram of the 400 kHz amplitude ratio scale apparent resistivity curve

下载: 全尺寸图片幻灯片

图 6 幅度比-相位差曲线

Fig. 6 Amplitude ratio and phase difference curves

下载: 全尺寸图片幻灯片

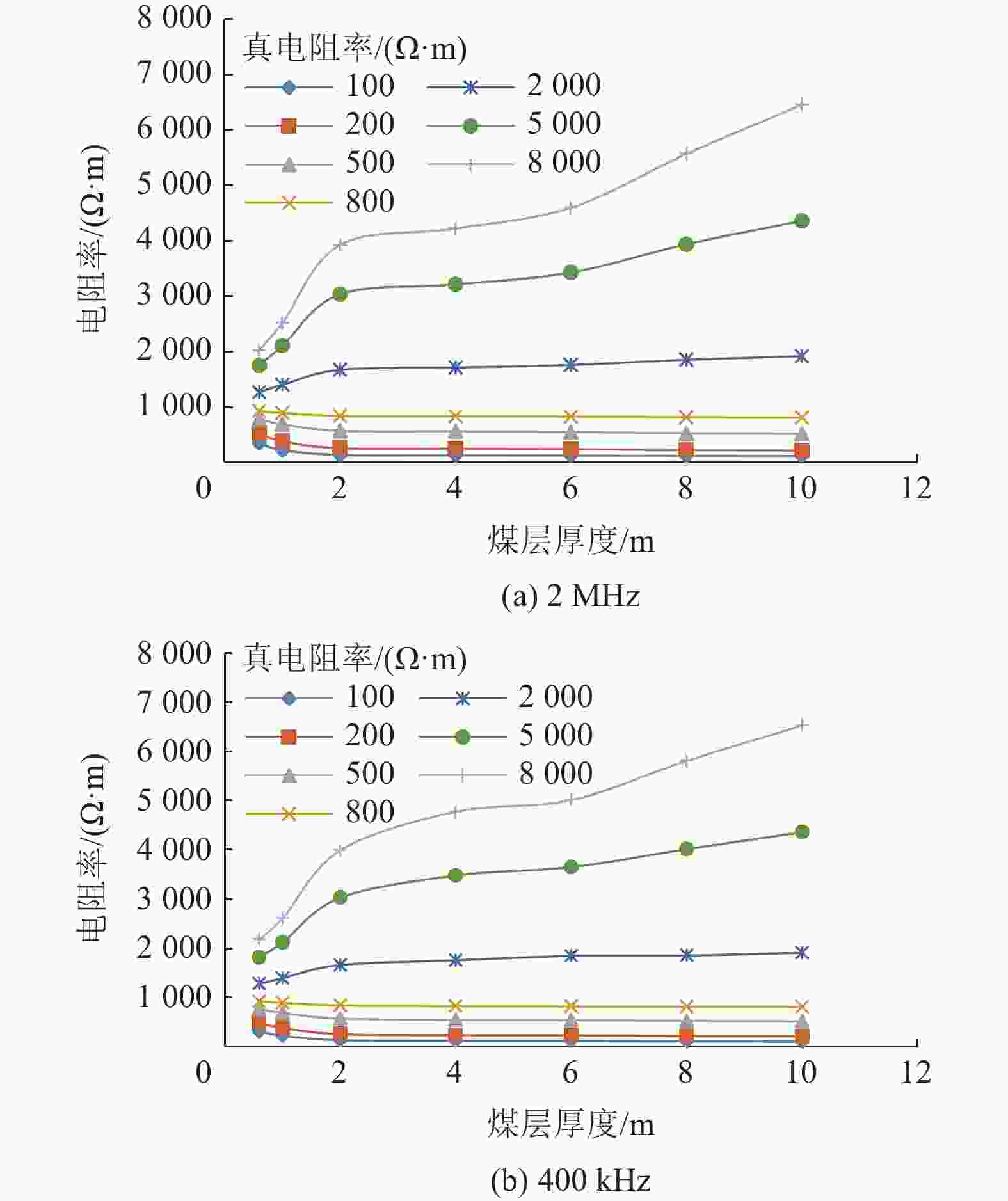

图 7 煤层厚度影响图版

Fig. 7 Influence chart of coal seam thickness

下载: 全尺寸图片幻灯片

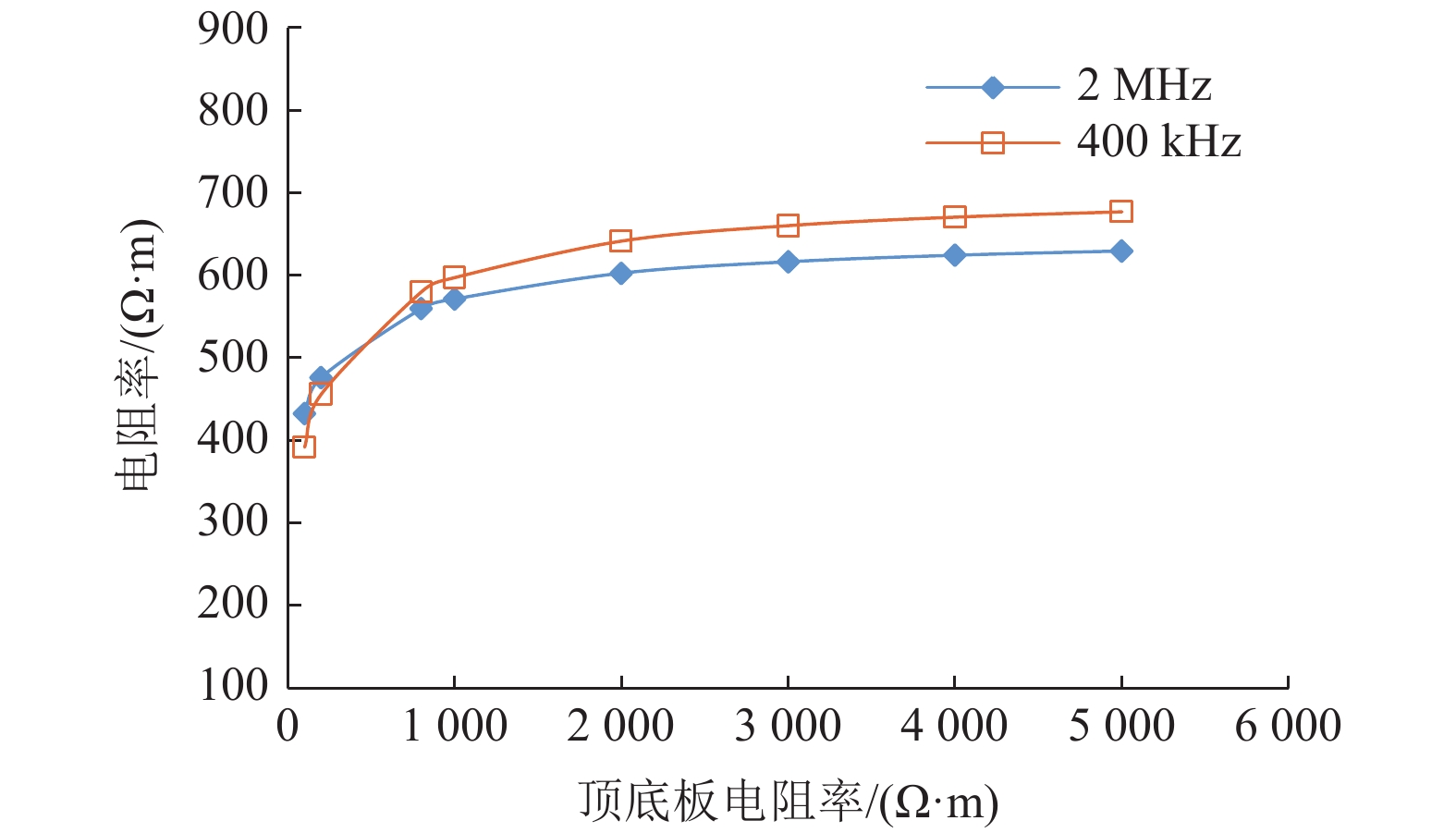

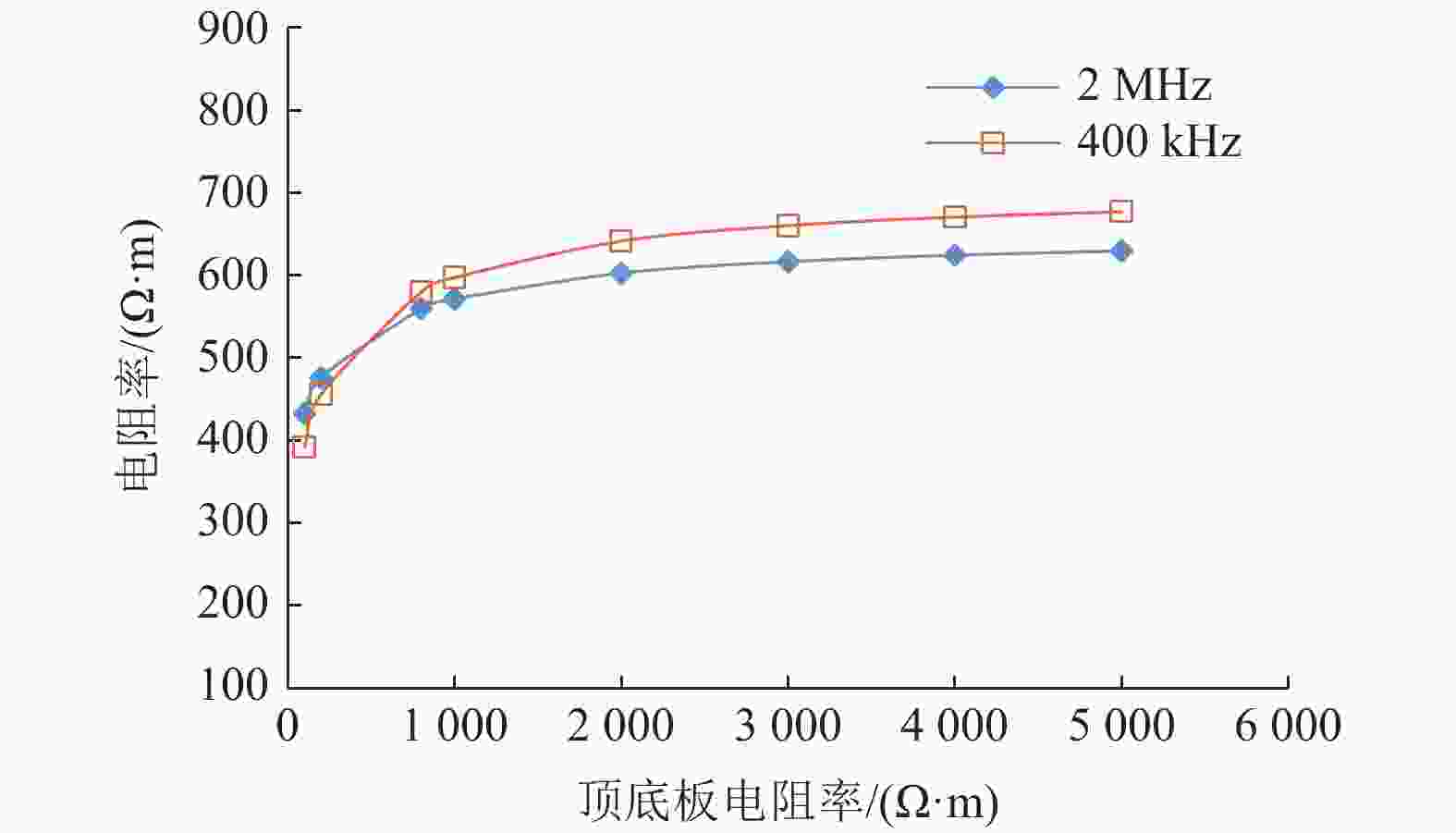

图 8 顶底板围岩影响图版

Fig. 8 Influence chart of surrounding rock of the roof and floor

下载: 全尺寸图片幻灯片

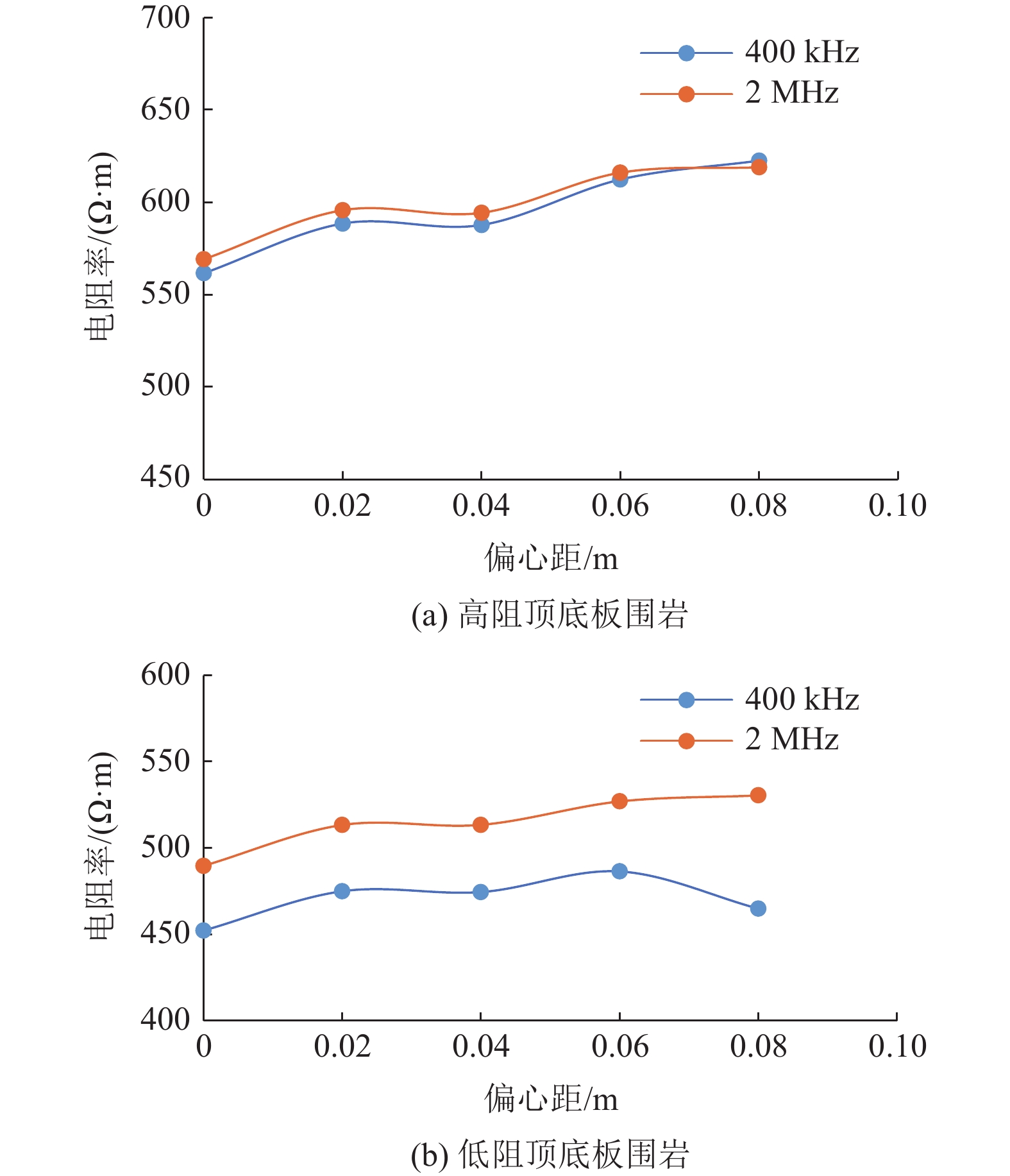

图 9 仪器偏心影响图版

Fig. 9 Instrument eccentricity influence chart

下载: 全尺寸图片幻灯片

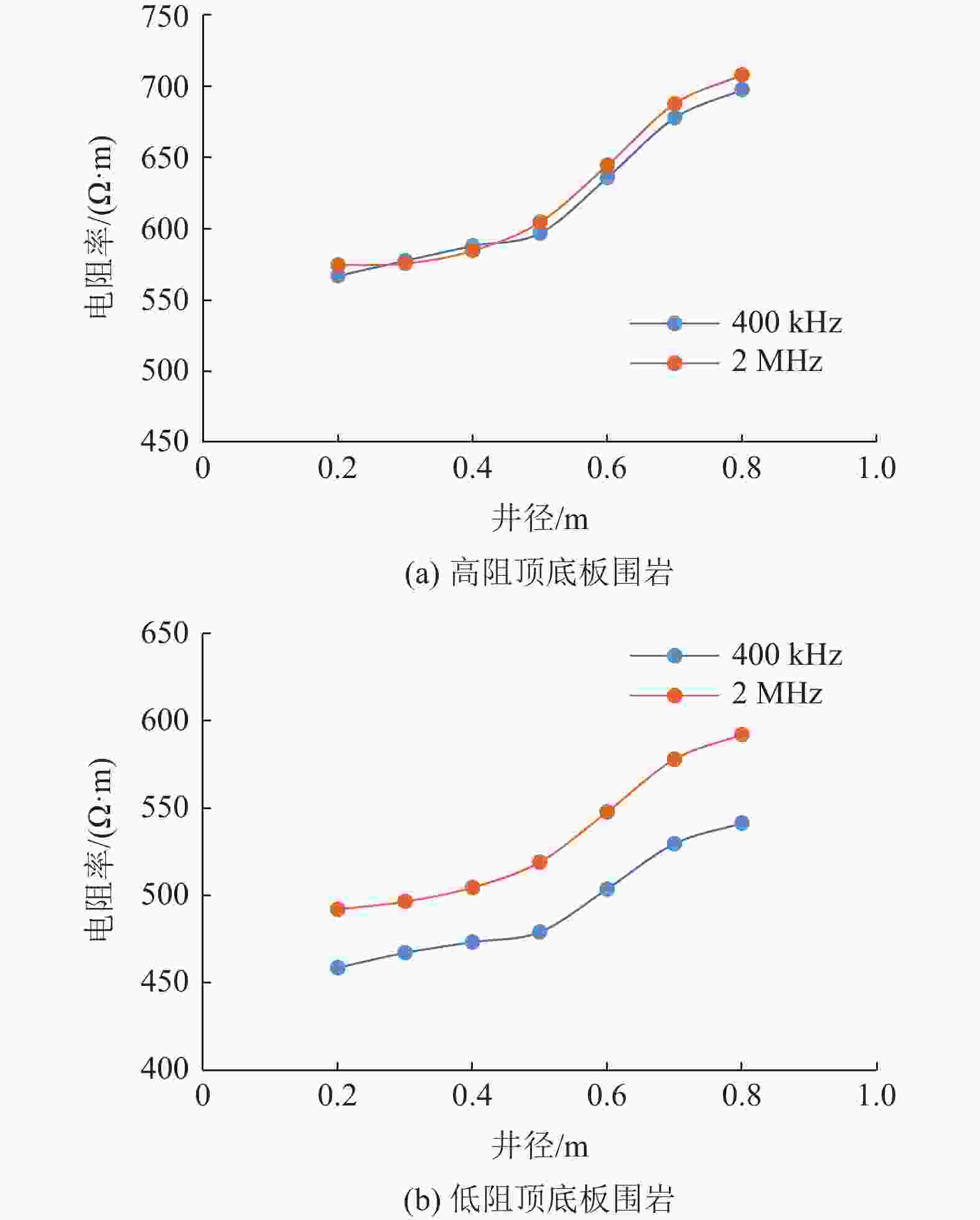

图 10 井径影响图版

Fig. 10 Well diameter influence chart

下载: 全尺寸图片幻灯片

表 1 岩石电阻率

Table 1 Rock resistivity

名称	电阻率/(Ω·m)	名称	电阻率/(Ω·m)
泥灰岩	5~5×$ {10}^{2} $	黏土	(1~2)×$ {10}^{2} $
石灰岩	50~5 000	页岩	10~100
白云岩	50~5 000	泥质页岩	5~1 000
硬石膏	10~$ {10}^{6} $	疏松页岩	2~50
无烟煤	1~1 000	致密页岩	20~1 000
烟煤	10~$ {10}^{6} $	含油气砂岩	2~1 000

下载: 导出CSV
