ZDY4500LFK全自动钻机开发与应用

董洪波; 范强; 李坤; 马斌

doi:10.12363/issn.1001-1986.21.12.0855

ZDY4500LFK全自动钻机开发与应用

doi: 10.12363/issn.1001-1986.21.12.0855

基金项目: 国家重点研发计划课题(2018YFC0808005)，中煤科工集团西安研究院有限公司科技创新基金项目(2020XAYDC01-1-2)

详细信息

第一作者:
董洪波，1979年生，男，辽宁朝阳人，博士，研究员，从事煤矿井下自动化钻机研发工作. E-mail：7281574@qq.com

通信作者:
范强，1988年生，男，陕西岐山人，硕士，助理研究员，从事煤矿井下自动化钻机研究与推广应用工作.E-mail：Fanqiang@cctegxian.com

中图分类号: TD41
计量
- 文章访问数: 377
- HTML全文浏览量: 48
- PDF下载量: 54
- 被引次数: 0
出版历程
- 收稿日期: 2021-12-21
- 修回日期: 2022-01-10
- 发布日期: 2022-02-01
- 网络出版日期: 2022-01-27

Development and application of ZDY4500LFK full automatic drilling rig

摘要

摘要: 为加速推进煤矿智能化建设，满足矿井透明地质保障系统构建需求，提高各类钻孔施工的自动化程度，减少井下工人数量，开发了ZDY4500LFK型全自动钻机，并配套开发了钻机的地面监测和控制系统。提出了该钻机结构设计方案，钻机地面监测和控制系统的组成和方案。并结合钻机在淮河能源西部煤电集团唐家会煤矿透明地质保障系统钻孔施工应用中遇到的问题，提出了杆仓列定位、自动接卸扣等关键技术，提高了钻机的可靠性、自动化程度。工业性试验结果表明：开发的地面监测和控制系统功能性、实时性满足使用要求，采用相关技术后，全自动钻机各系统运行可靠，杆仓列定位精准，主动钻杆丝扣磨损明显减少。研制的ZDY4500LFK型全自动钻机及其配套监测和控制系统减少了井下施工人员的数量，实现了稳定的全自动钻孔作业，为唐家会煤矿透明地质保障系统提供了可靠装备支撑。
- 全自动钻机 /
- 地面监测系统 /
- 地面控制系统 /
- 杆仓列定位 /
- 自动接卸扣 /
- 透明地质保障系统
Abstract: The ZDY4500LFK full automatic drilling rig was developed and equipped with a surface monitoring and control system to improve the automation of various drilling works and reduce the number of underground workers, then accelerate the intelligent construction of coal mines and meet the demand for the construction of transparent geological security system in mines. In consideration of the key technical problems encountered in the drilling construction of the drilling rig in the transparent geological guarantee system in Tangjiahui Coal Mine of Huaihe Energy West Coal and Electricity Group, such key technologies as row positioning technology and automatic unloading buckle were proposed to achieve an effective improvement in the reliability and automation of the drilling rig. The results of industrial test show that the functionality and real-time performance of the developed ground monitoring and control system meet the application requirements. With the adoption of the relevant technologies, the systems of the full automatic drilling rig operate reliably with rod bin row precisely positioned, thread wear of the active drill pipe significantly reduced. Consequently, the ZDY4500LFK automatic drilling rig together with its guarantee monitoring and control system have reduced the number of underground construction personnel, realized reliable and stable full-automatic drilling operation, ultimately providing reliable equipment guarantee for the transparent geological guarantee system for Tangjiahui Coal Mine.
- full automatic drilling rig /
- the ground monitoring system /
- the ground control system /
- rod bin row positioning /
- automatic unloading buckle /
- transparent geological guarantee system

HTML全文

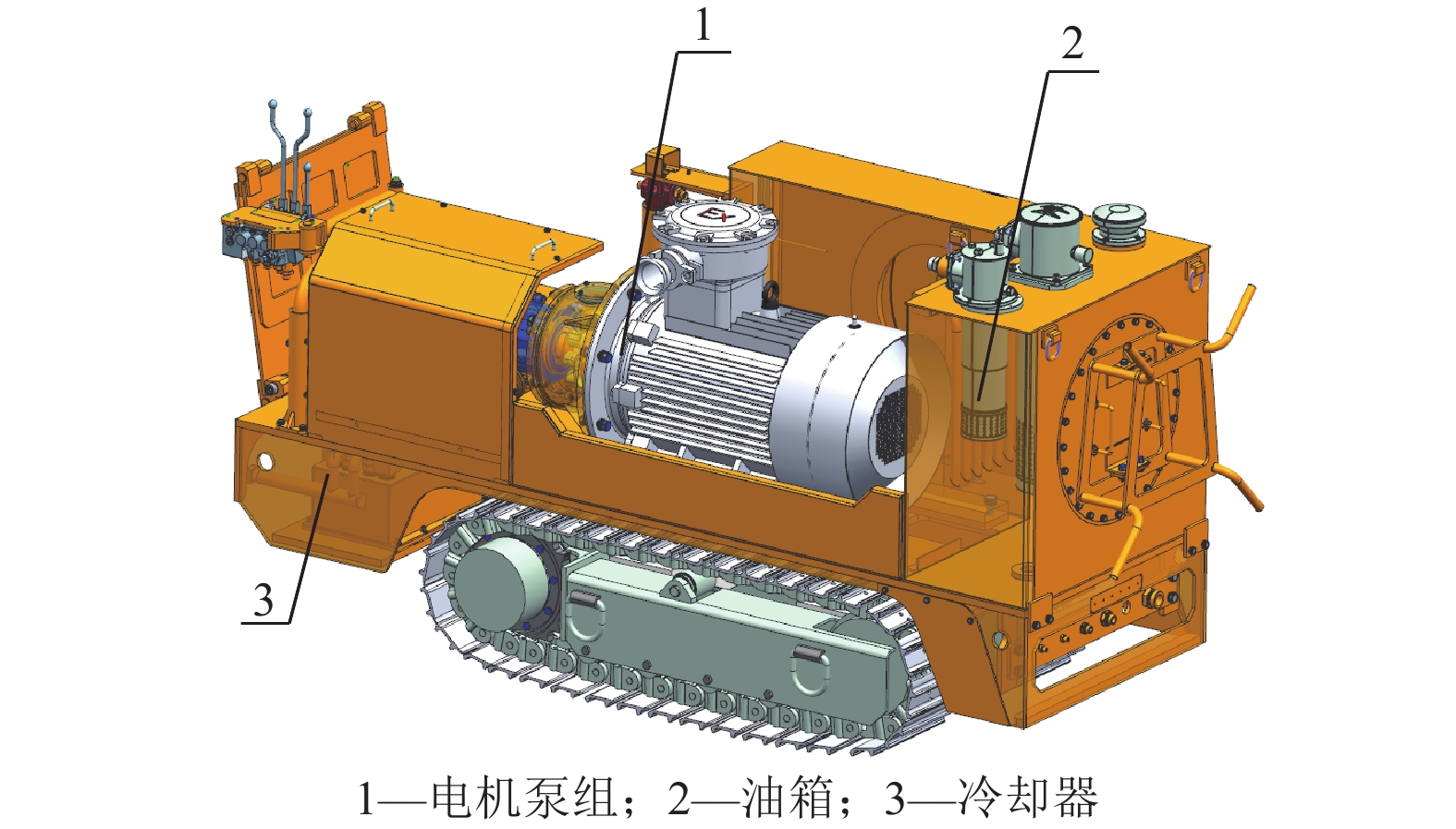

图 1 泵车系统主要组成

Fig. 1 Main system composition of the pump truck

下载: 全尺寸图片幻灯片

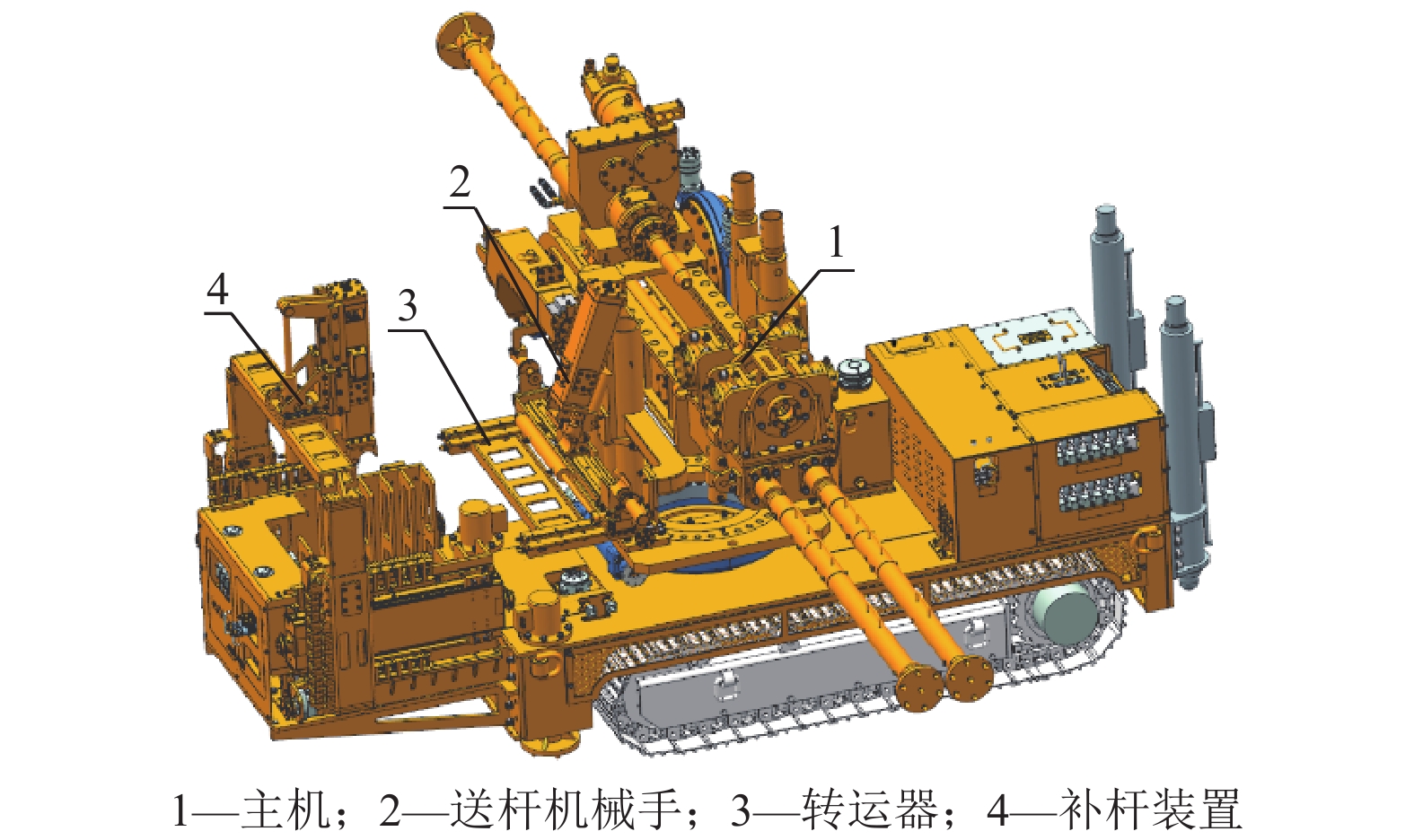

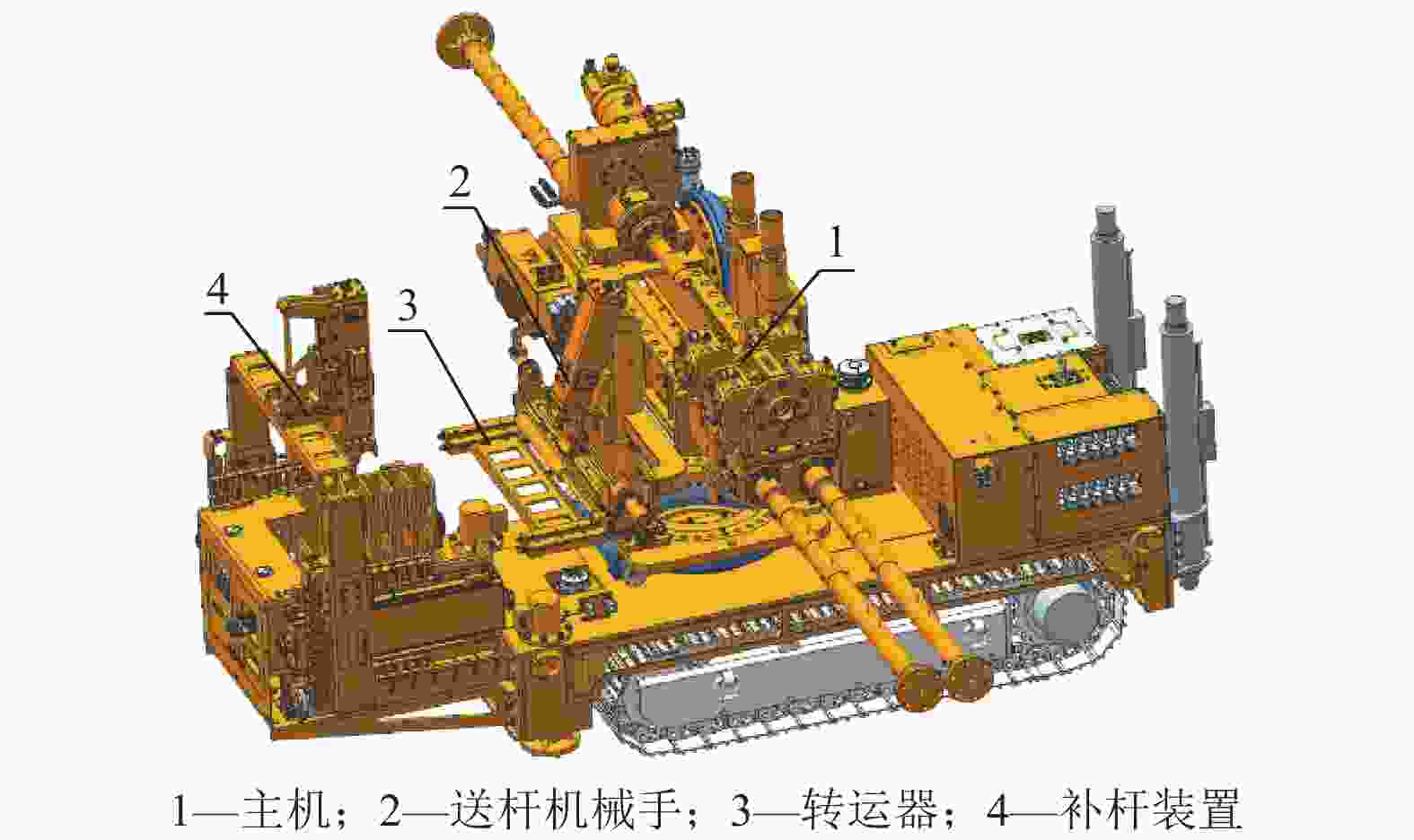

图 2 钻车主要系统组成

Fig. 2 Main system composition of the drilling rig

下载: 全尺寸图片幻灯片

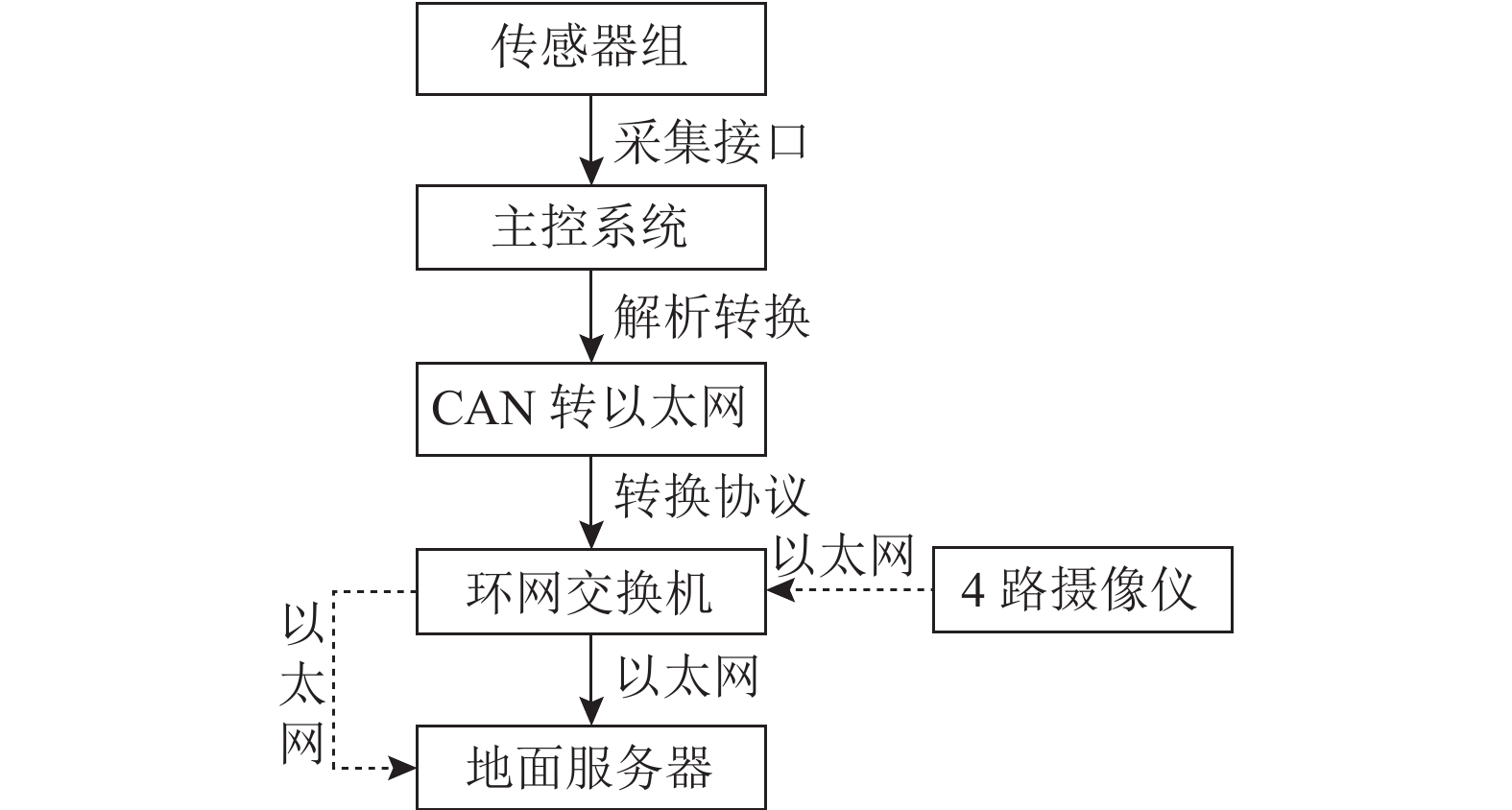

图 3 监测系统组成和工作原理

Fig. 3 Composition and working principle of the monitoring system

下载: 全尺寸图片幻灯片

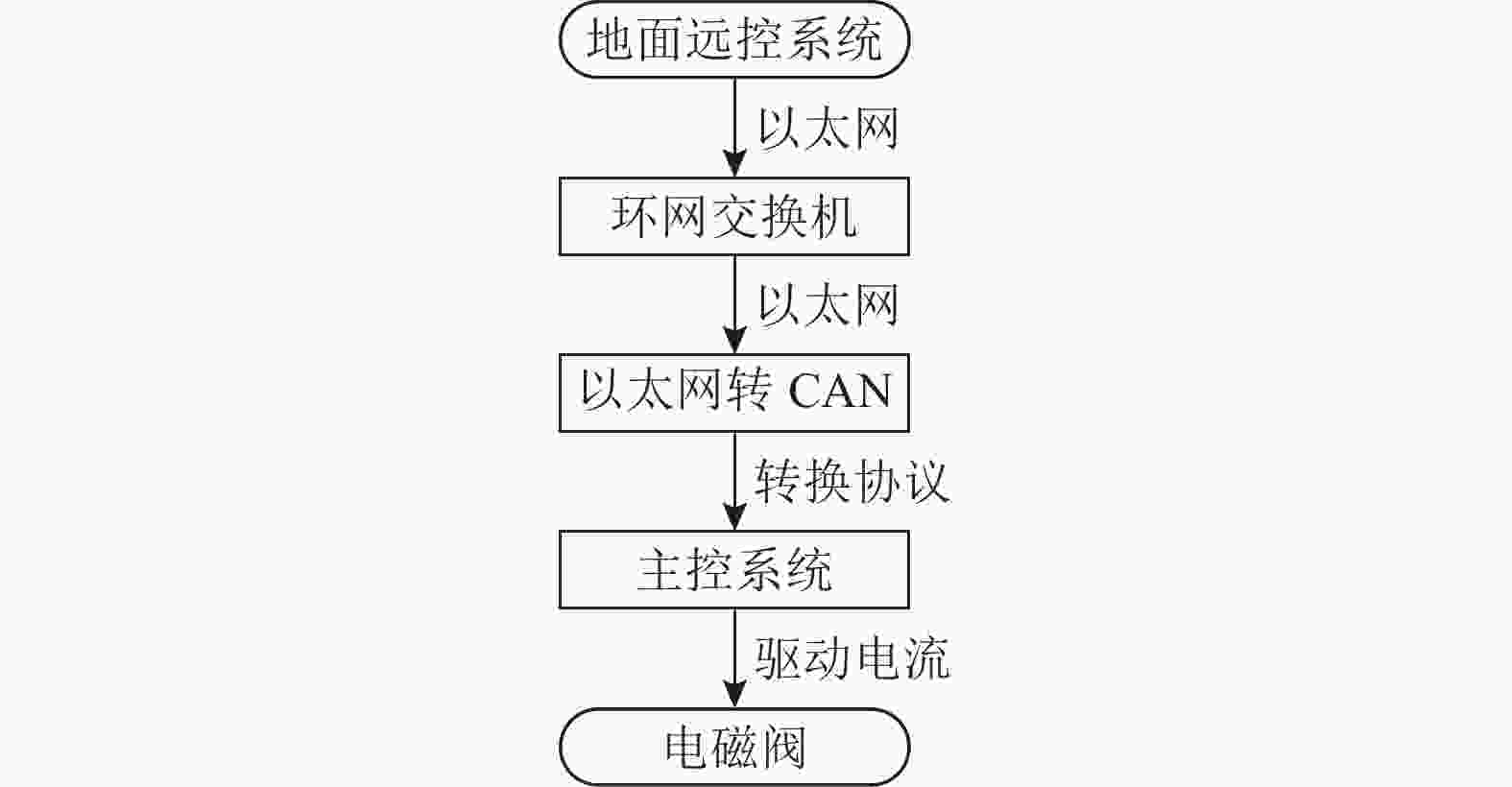

图 4 控制系统组成和工作原理

Fig. 4 Composition and working principle of the control system

下载: 全尺寸图片幻灯片

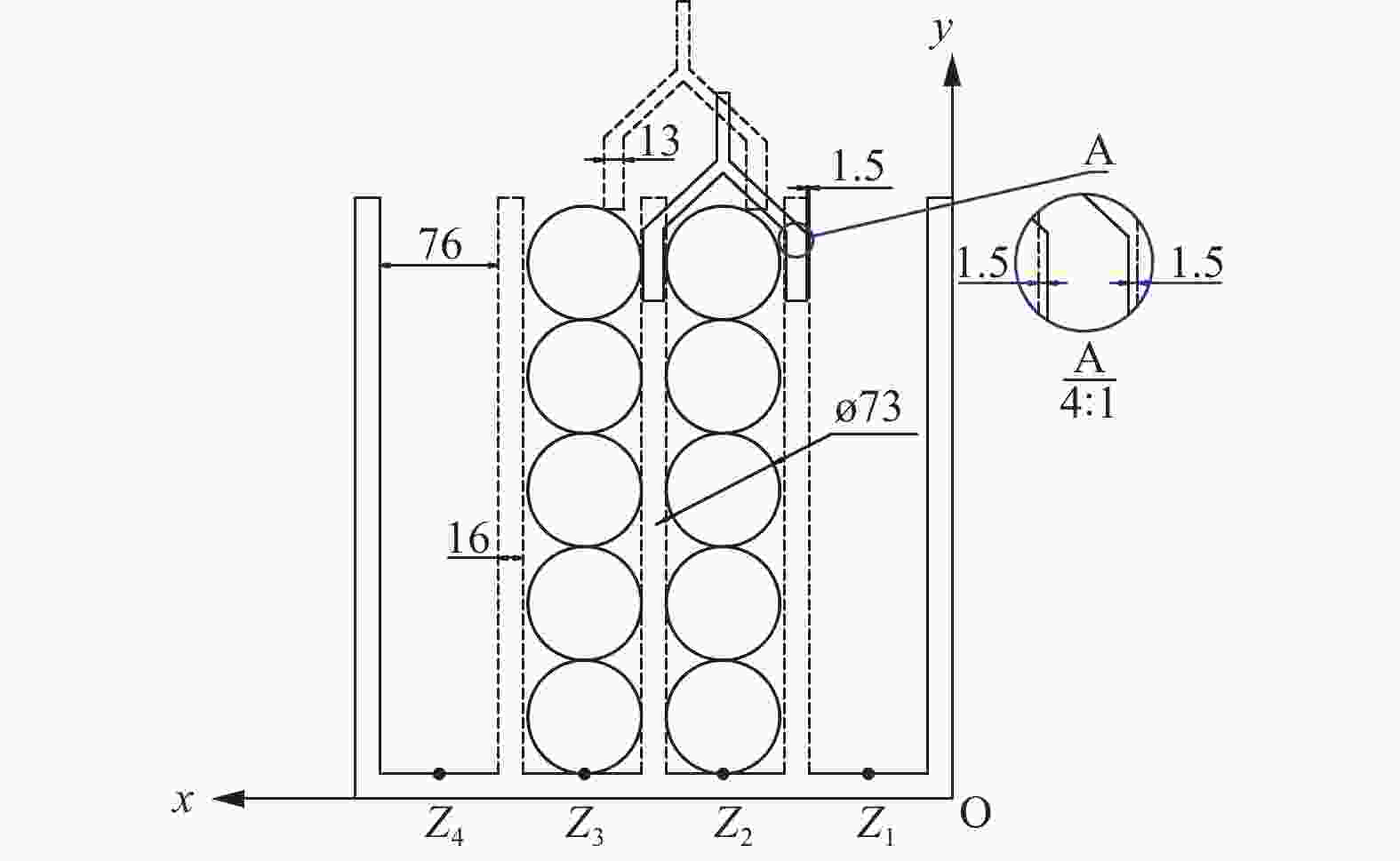

图 5 补杆装置示意图

Fig. 5 Schematic diagram of reinforcing rod device

下载: 全尺寸图片幻灯片

图 6 列定位控制流程

Fig. 6 Control process of column positioning

下载: 全尺寸图片幻灯片

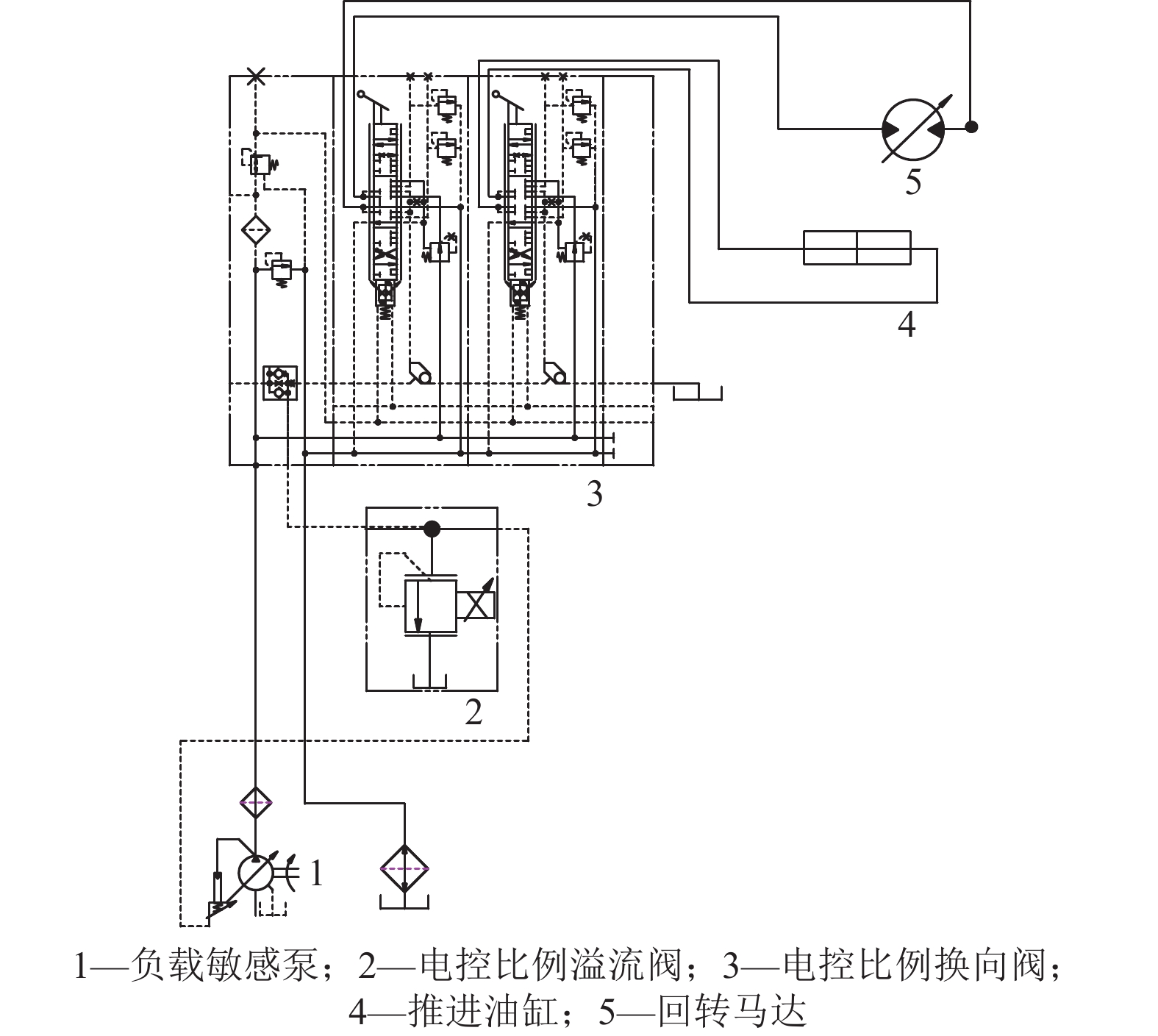

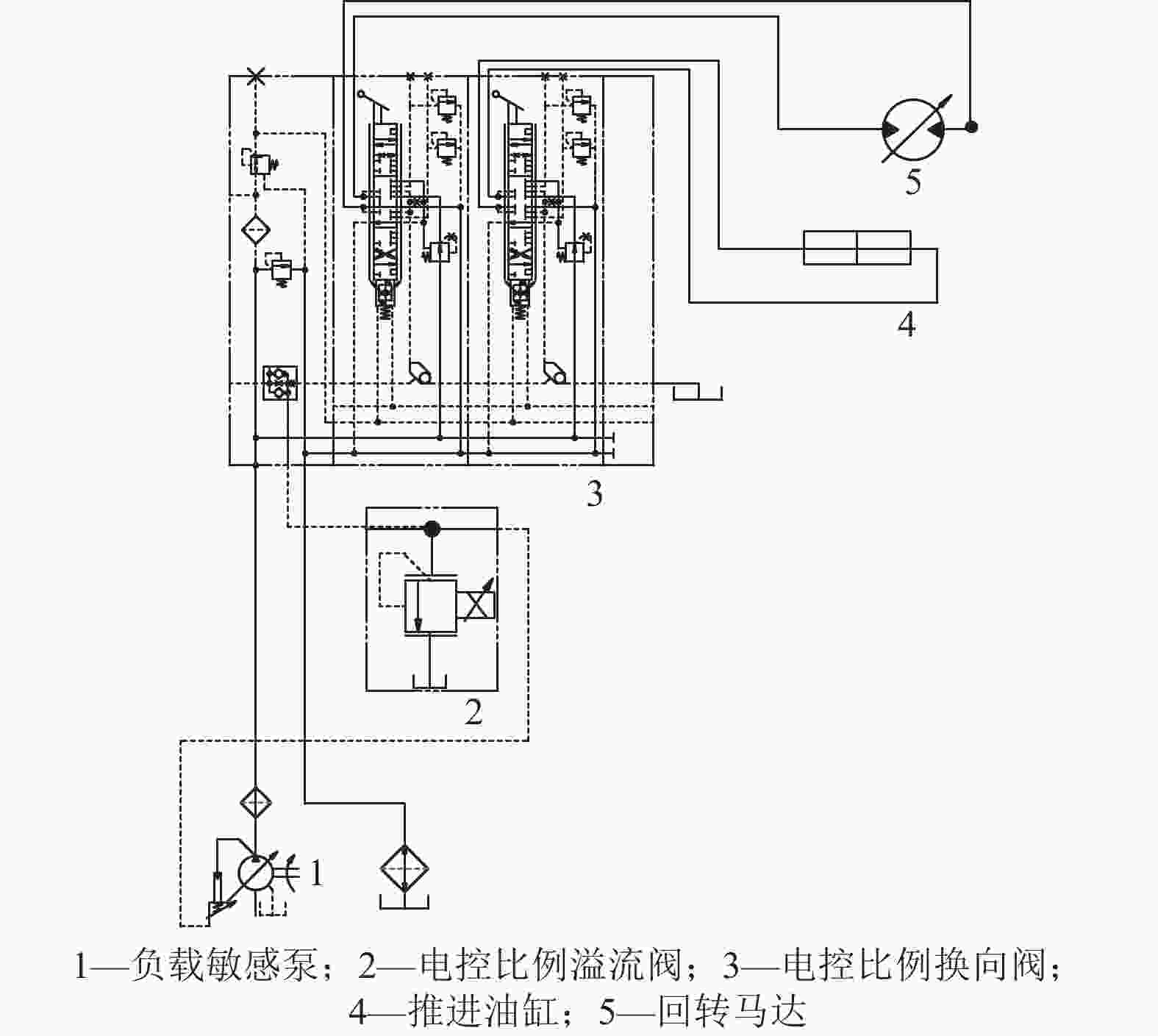

图 7 接扣限压原理图

Fig. 7 Schematic diagram of buckle voltage limiting

下载: 全尺寸图片幻灯片

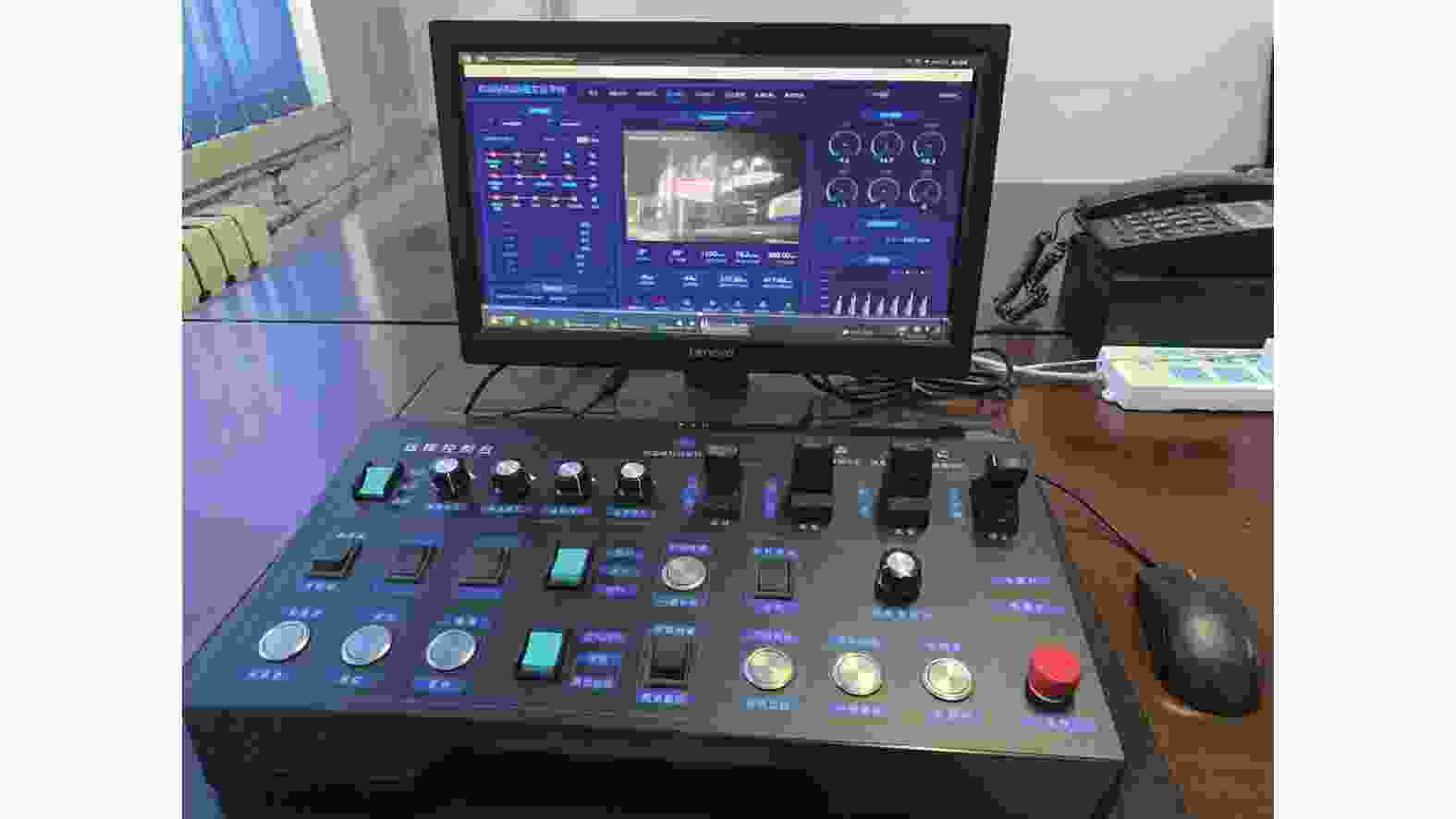

图 8 全自动钻机地面监测与控制系统

Fig. 8 Full automatic drilling rig ground control system

下载: 全尺寸图片幻灯片

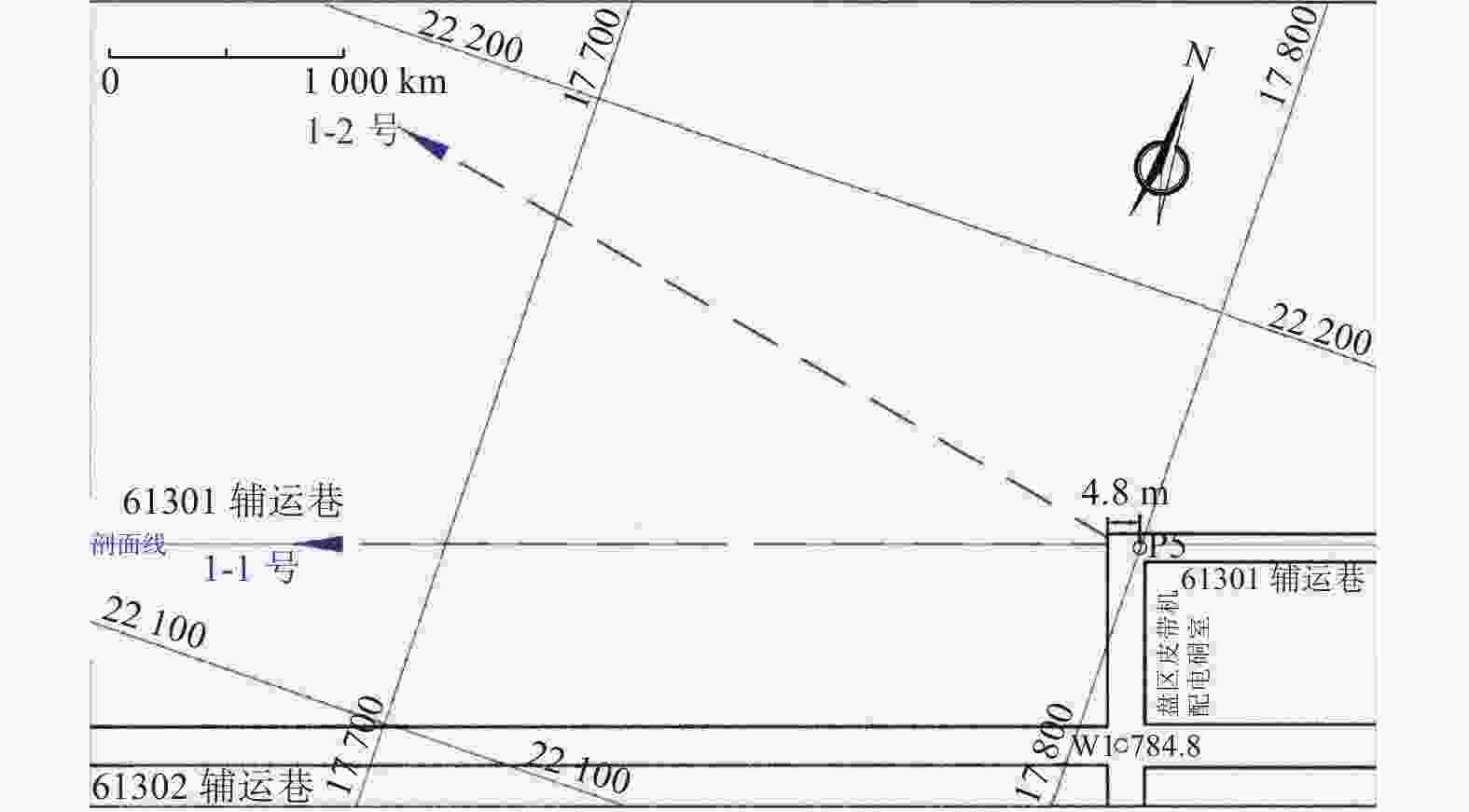

图 9 疏放水钻孔设计平面图

Fig. 9 Plane design drawing of drainage borehole plan

下载: 全尺寸图片幻灯片

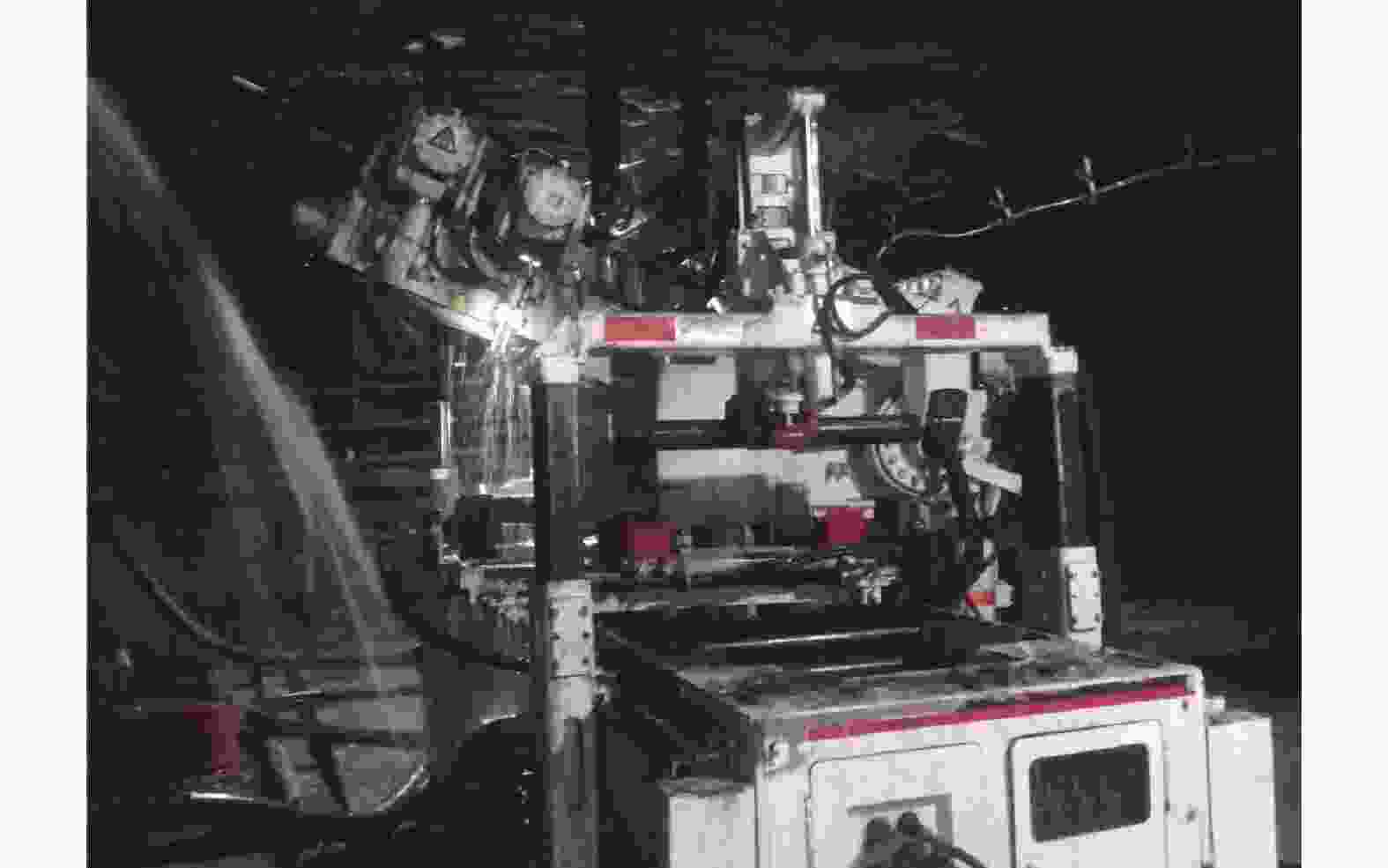

图 10 钻进施工现场

Fig. 10 Drilling construction site drawing

下载: 全尺寸图片幻灯片

表 1 钻机主要性能参数

Table 1 Main performance parameters of the drilling rig

主要性能	参数
电机功率/kW	55
输出转矩/(N·m)	1 100~4 500
倾角/(°)	−30~90
方位角/(°)	0~360
给进行程/mm	900
给进力、起拔力/kN	90/150
遥控距离/m	50
杆仓容量/根	45
钻杆直径/mm	73
钻杆长度/mm	800

下载: 导出CSV
