Study on methane adsorption/desorption and flow law in the nanopores of coal based on LAMMPS
-
摘要: 基于LAMMPS(Large-scale Atomic/Molecular Massively Parallel Simulator)分子动力学方法，研究煤纳米孔隙中驱动力、孔径、温度和压力对甲烷吸附/解吸和流动的影响规律。结果表明，随着驱动力增加，甲烷分子黏度逐渐减小，流动性增强，流动速度增大，滑移长度绝对值逐渐减小，流动趋近于无滑移状态。甲烷的吸附密度与驱动力无关，主要受气−固作用影响。甲烷在流动过程中会吸附于煤孔隙壁面，当煤孔径较小时，甲烷几乎全部吸附，无游离态甲烷。增大煤孔径，壁面范德华力对游离态甲烷影响减弱，甲烷流动速度增大，孔隙内出现大量游离态甲烷，甲烷由单峰分布转为2个对称的双峰分布。大孔径中甲烷黏度较低，流动性好，Hagen-Poiseuille方程更适用于较大孔径中的甲烷流动。升高温度，甲烷分子热运动增强，吸附层密度降低，甲烷流动速度增加，煤孔隙壁上吸附态甲烷解吸为游离态甲烷，甲烷流量增大。增大压力，孔隙内甲烷数量逐渐增多，甲烷分子间强烈的相互碰撞使得甲烷流动阻力增大，流速减小。从微观角度通过建立更加真实的模型阐明了煤纳米孔隙中甲烷吸附/解吸和流动机制，研究结果可为工程应用中促进甲烷解吸、提升煤层气开采效率提供理论基础。Abstract: In this work, the influence rules of driving force, pore size, temperature and pressure on methane adsorption/desorption and flow in coal nanopores were investigated by the molecular dynamic method based on Large-scale Atomic/Molecular Massively Parallel Simulator (LAMMPS). The investigation results show that the viscosity of methane gradually decreases with the increasing driving force, while its fluidity and flow velocity increase. Meanwhile, the absolute slip length decreases and the flow tends to the non-slip state. Generally, the adsorption density of methane is independent of the driving force, but greatly affected by the gas-solid action. Methane can be adsorbed on the pore wall of coal during its flowing. For a small pore diameter of coal, the methane is almost adsorbed without free status. With the increase of pore size, the influence of the wall van der Waals force on the free methane molecules is weakened, and thus the flow velocity of methane increases, leading to a large amount of free methane present in the pores. Consequently, the methane changes from the unimodal distribution to the symmetrical bi-modal distribution. For methane has lower viscosity and good fluidity in the large pores, the Hagen-Poiseuille equation is more suitable for the methane flow therein. As the temperature increases, the thermal motion of methane molecule is enhanced, the density of the adsorption layer decreases, and the methane flow rate increases. Thereby, the adsorbed methane on the pore wall of coal is desorbed into free methane, increasing the flow rate of methane. With the increase of pressure, the amount of methane in the pore increases, resulting in the strong collision among methane molecules, so that the flow resistance of methane increases to slow down its flowing. In this work, the methane adsorption/desorption and flow mechanism in coal nanopores was clarified from a microscopic perspective by establishing some more realistic models. Hence, the research results could provide a theoretical basis for promoting methane desorption and improving the efficiency of coalbed methane extraction in engineering applications.
-
Key words:
- coal /
- nanopores /
- methane flow /
- LAMMPS /
- molecular dynamics
-

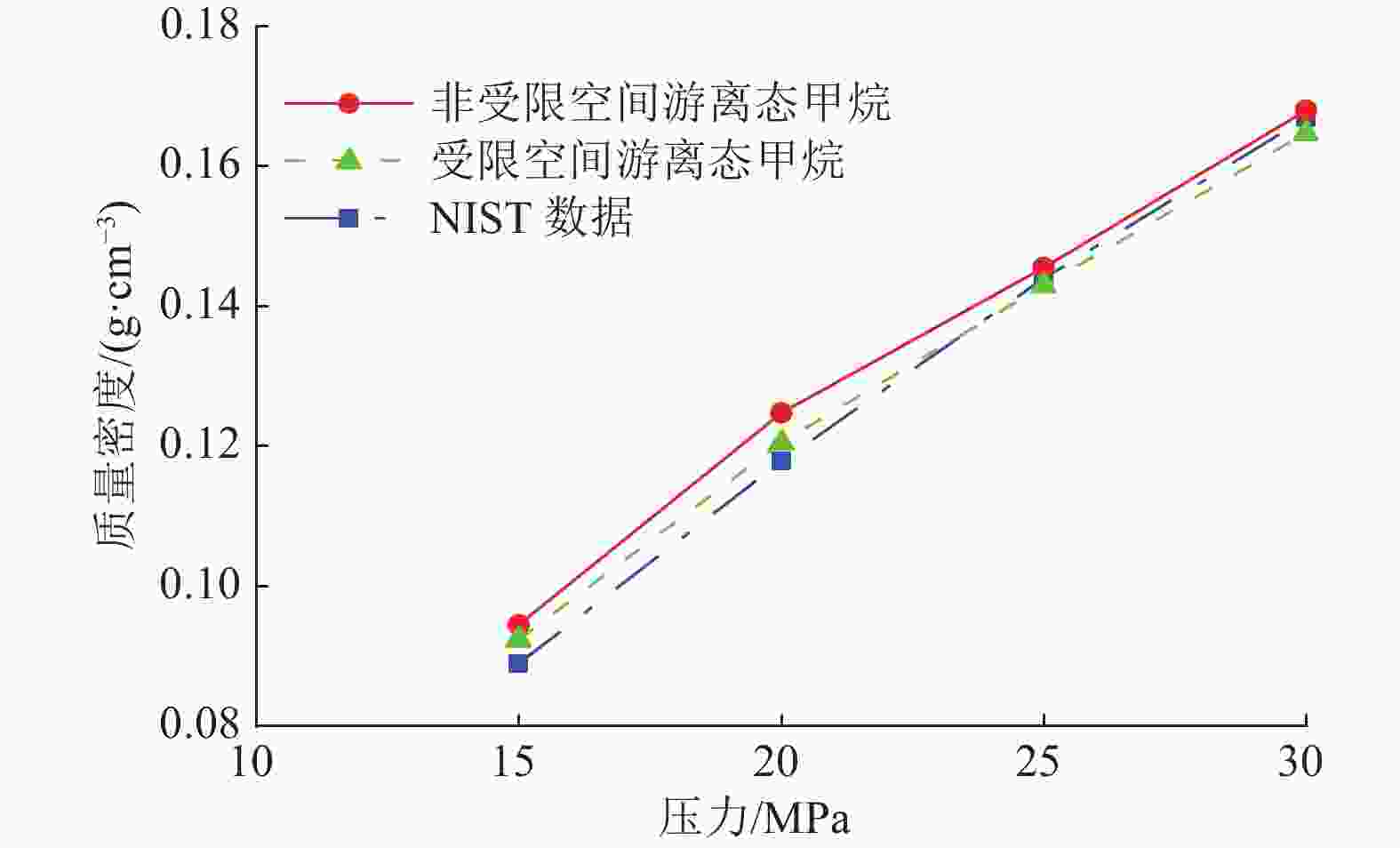

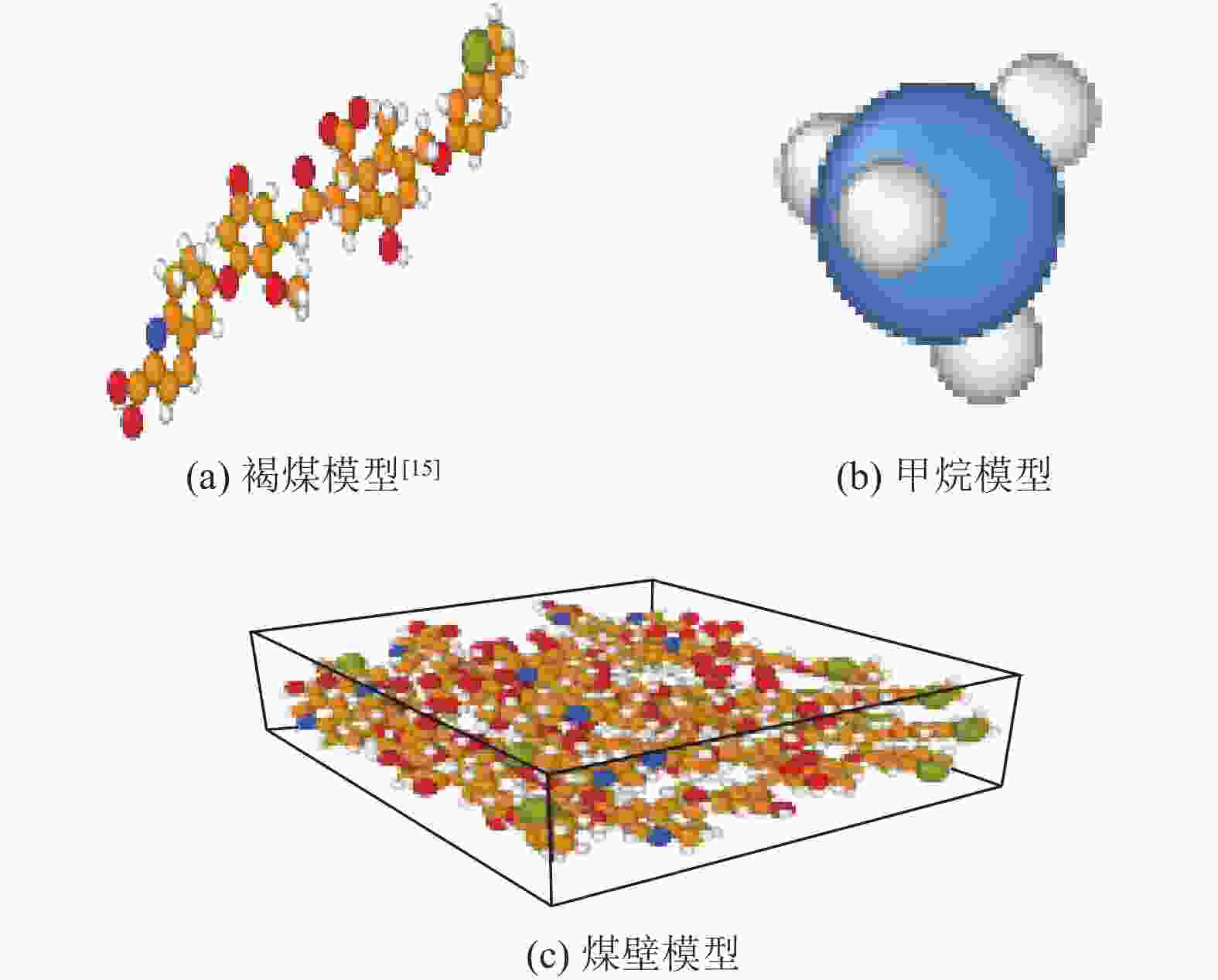

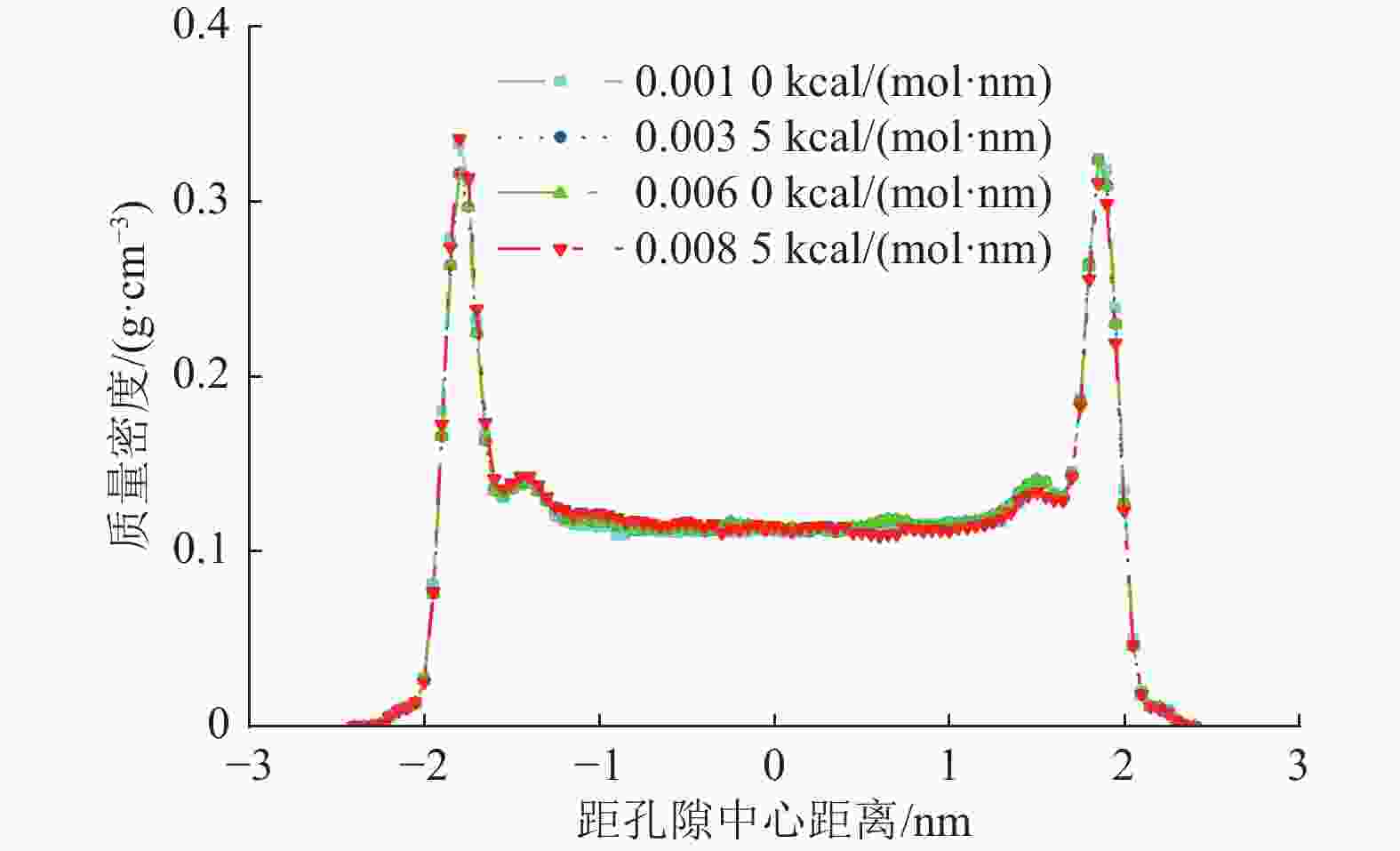

图 4 不同驱动力下孔隙中甲烷的质量密度分布
Fig. 4 Mass density distribution of methane in pore under different driving forces

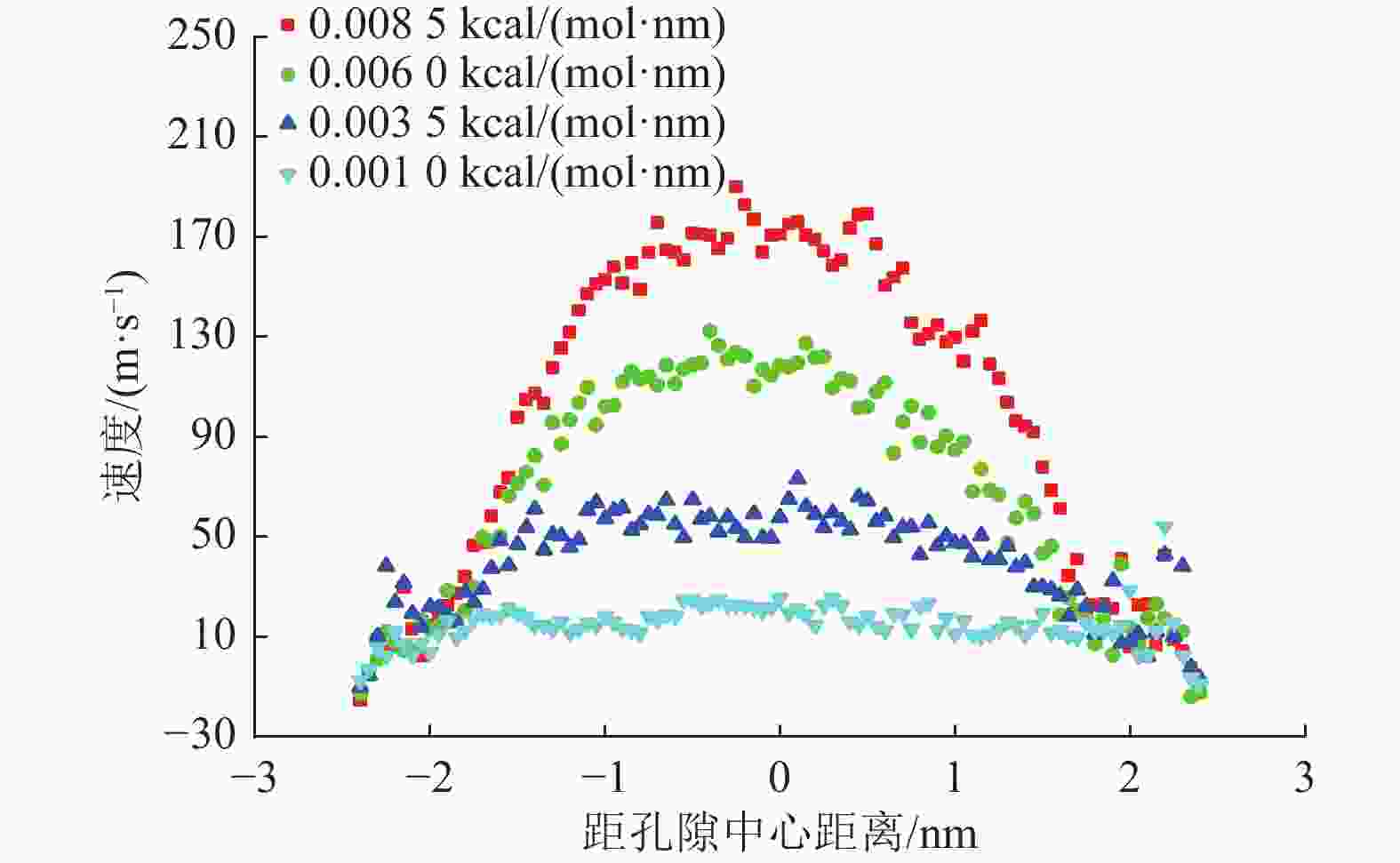

图 5 不同驱动力下孔隙中甲烷的速度分布
Fig. 5 Velocity distribution of methane in pore under different driving forces

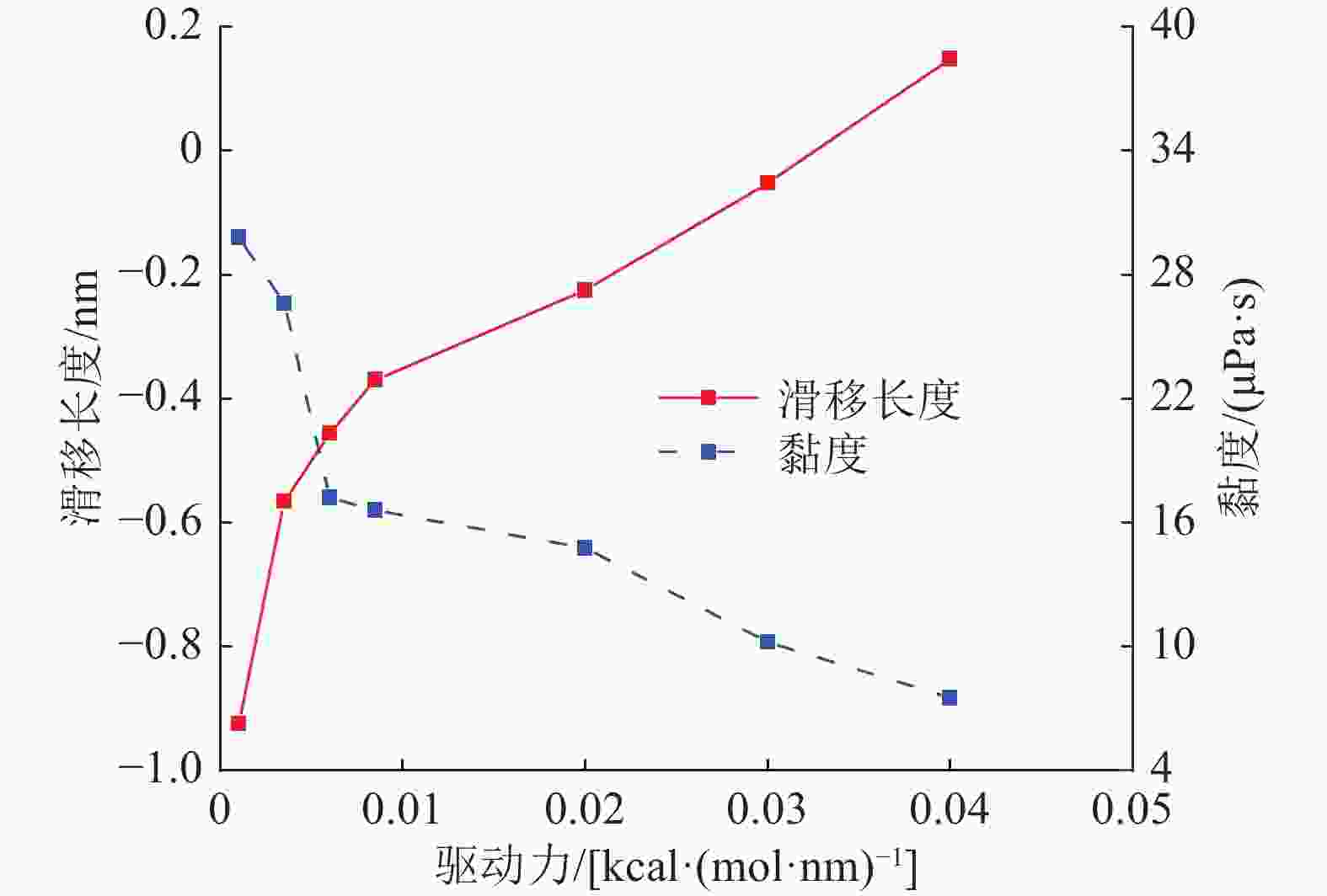

图 6 不同驱动力下甲烷的滑移长度和黏度
Fig. 6 Slip length and viscosity of methane under different driving forces

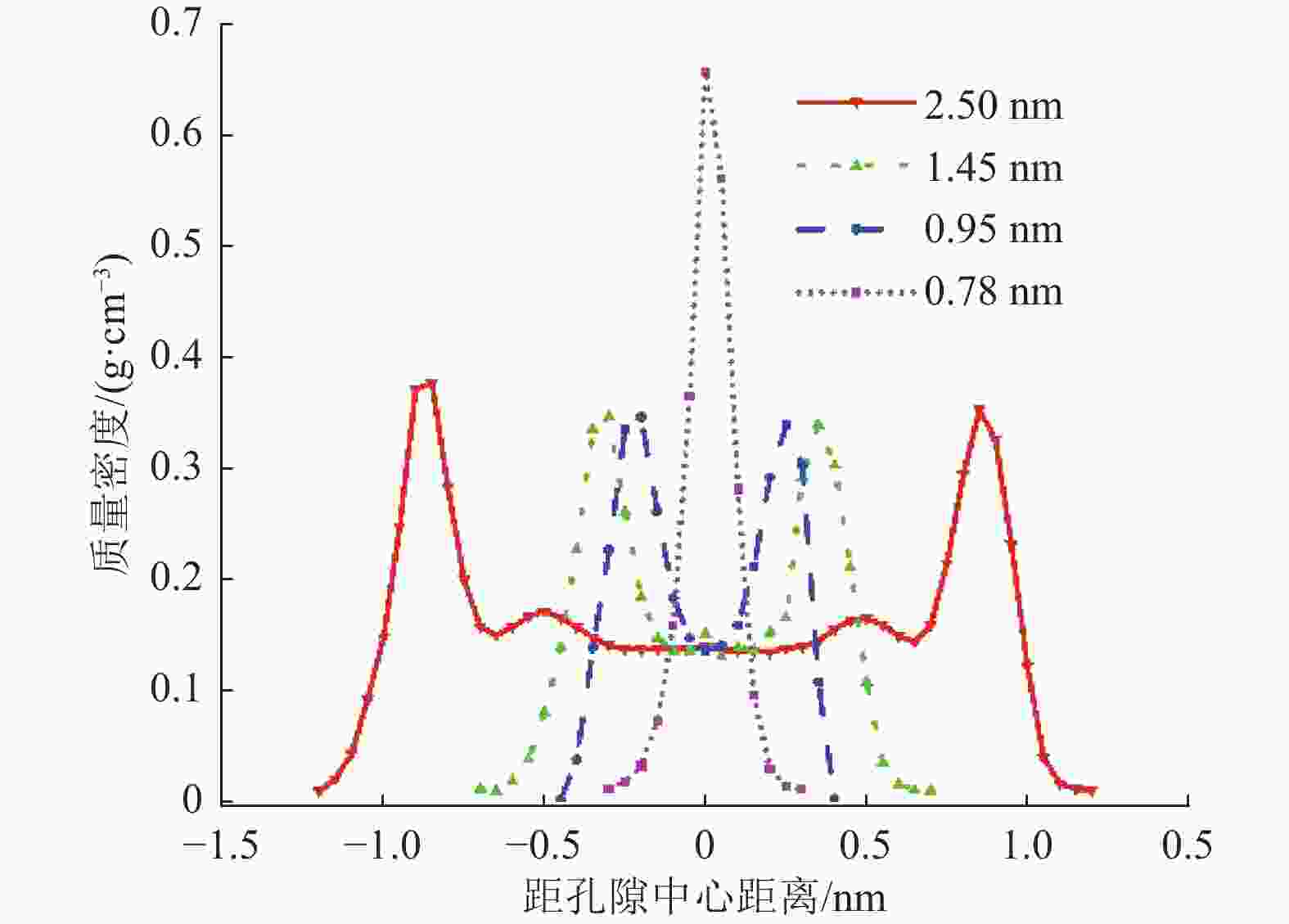

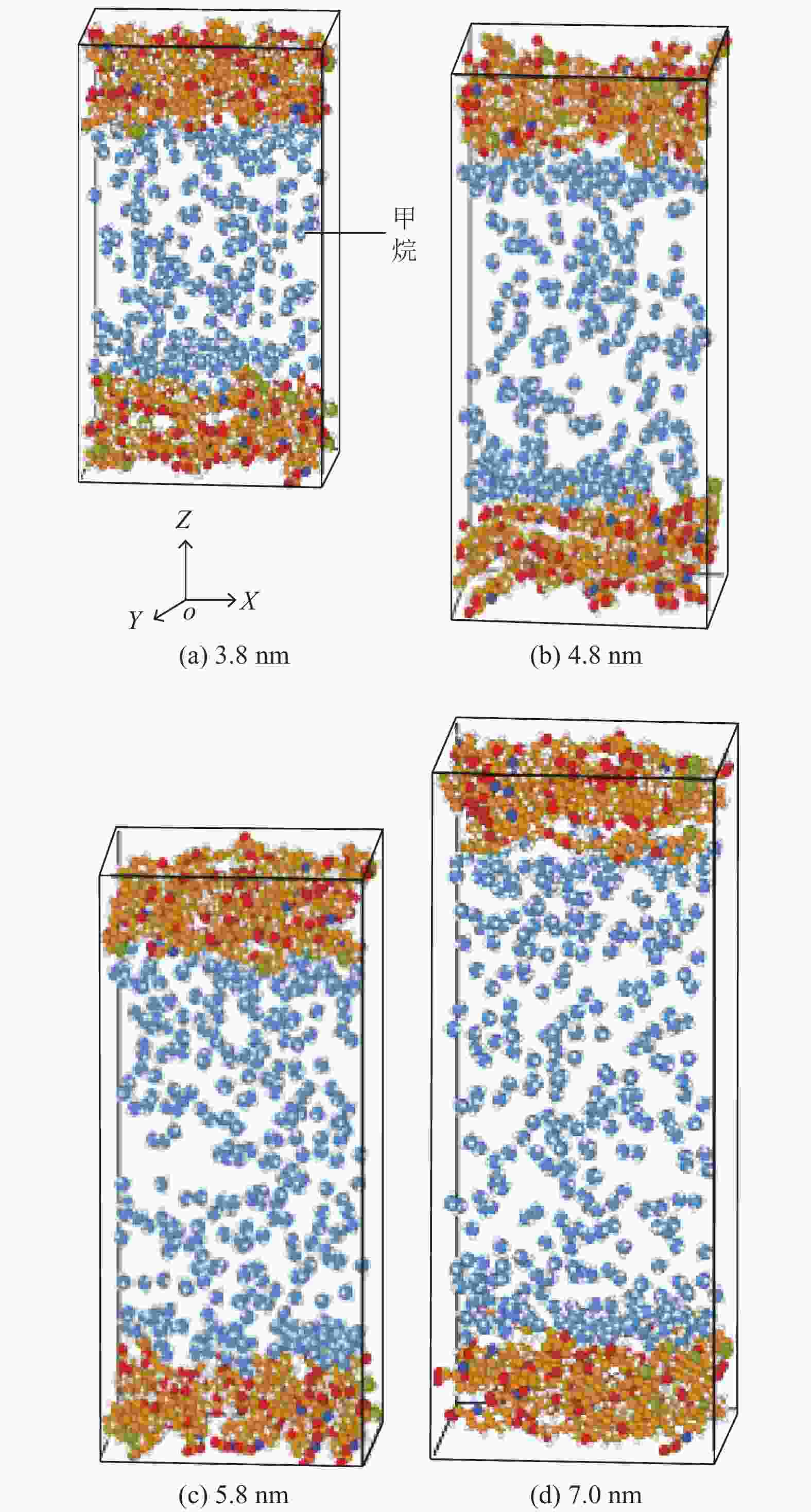

图 8 3.8~7.0 nm孔径中甲烷质量密度分布
Fig. 8 Mass density distribution of methane in the pores size from 3.8 nm to 7.0 nm

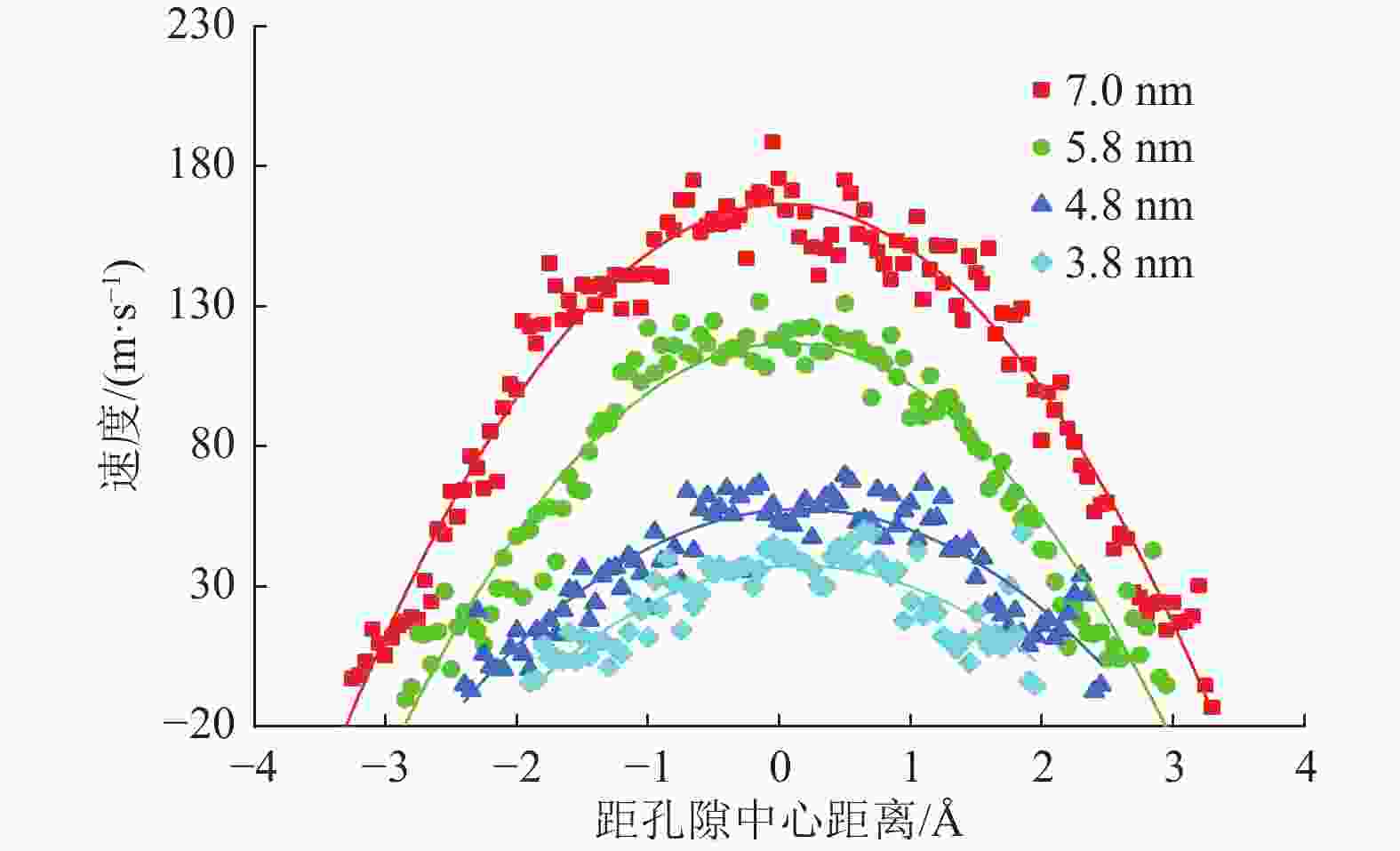

图 9 不同孔径中甲烷流动速度分布
Fig. 9 Flow velocity distribution of methane under different pore sizes

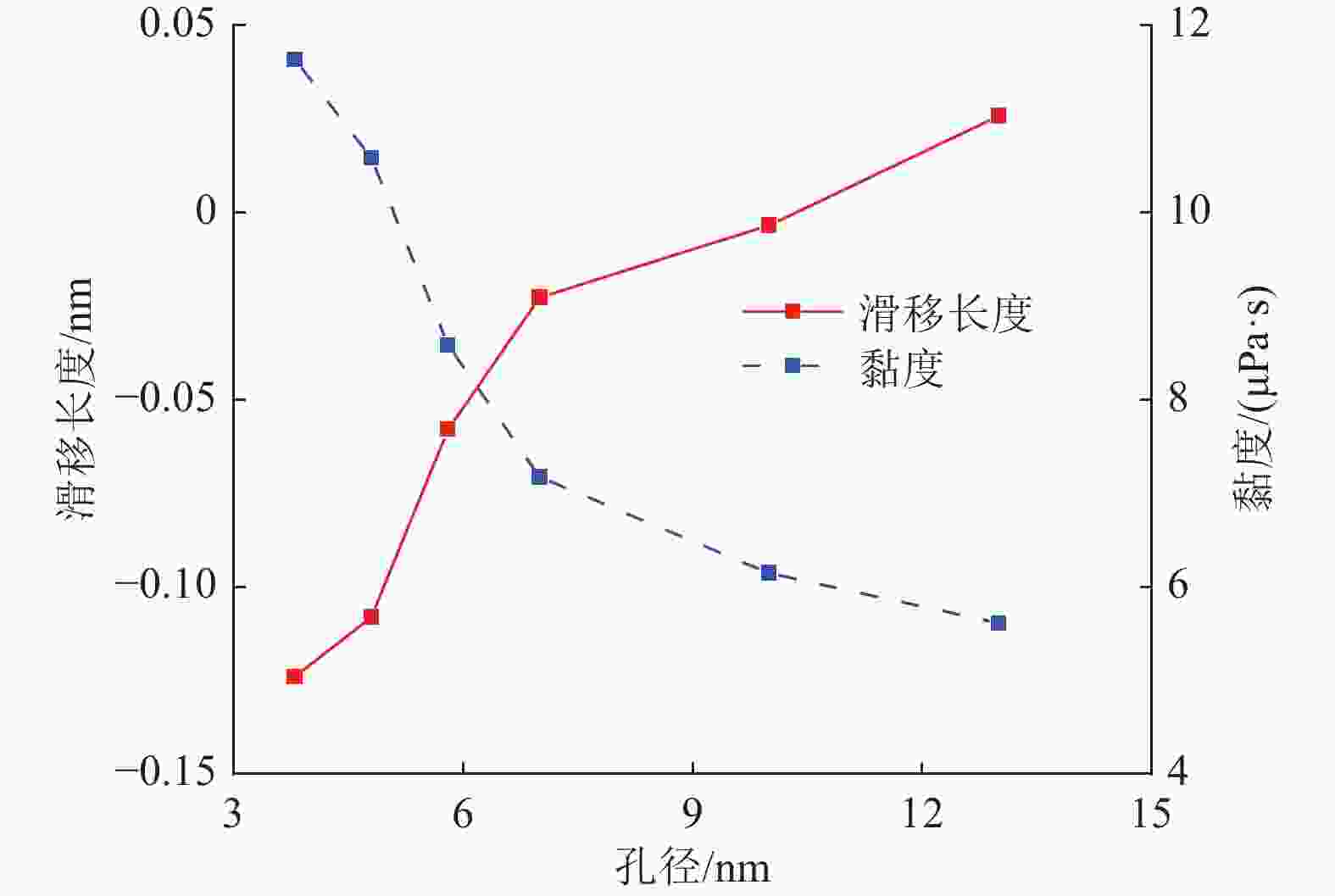

图 10 不同孔径下甲烷的滑移长度和黏度
Fig. 10 Slip length and flow viscosity of methane under different pore sizes

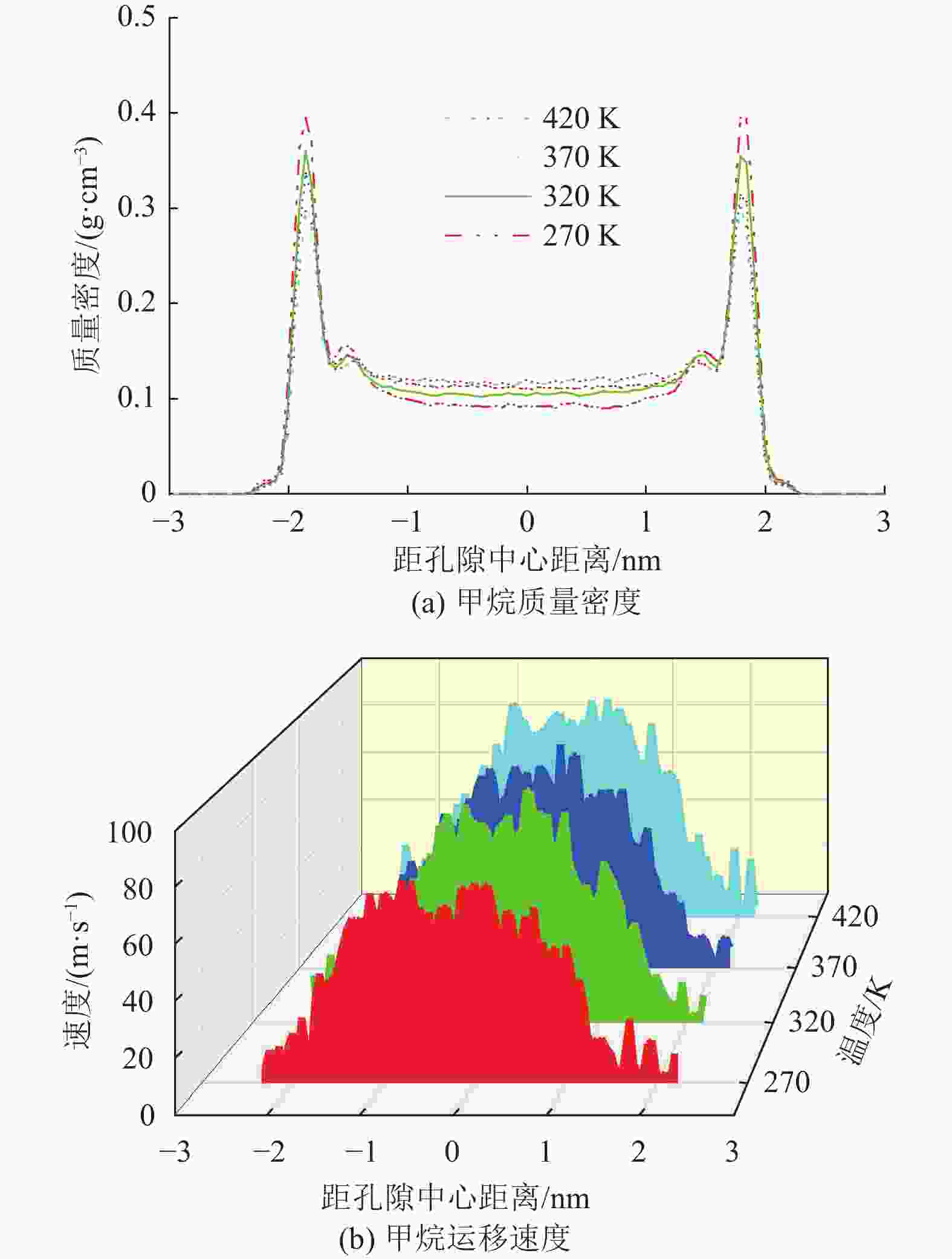

图 11 不同温度下甲烷的质量密度和运移速度分布
Fig. 11 Mass density and flow velocity distribution of methane at different temperatures

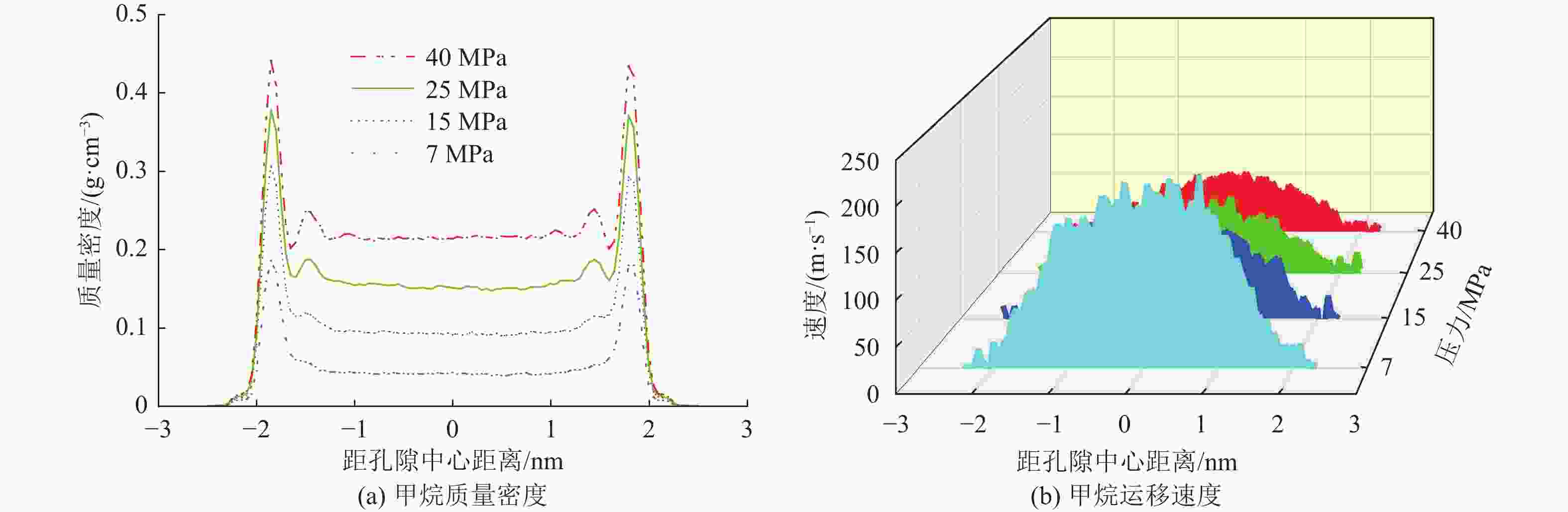

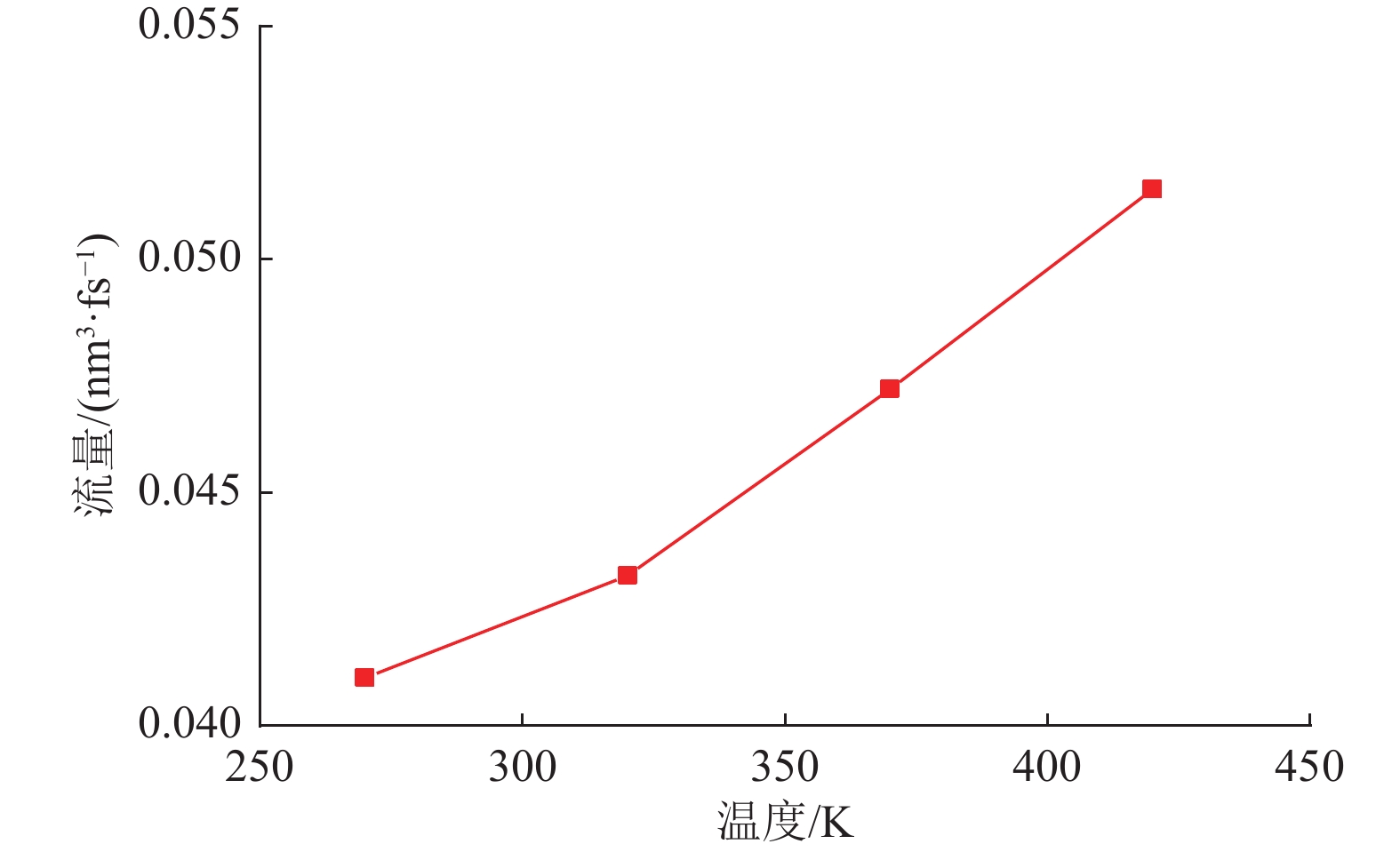

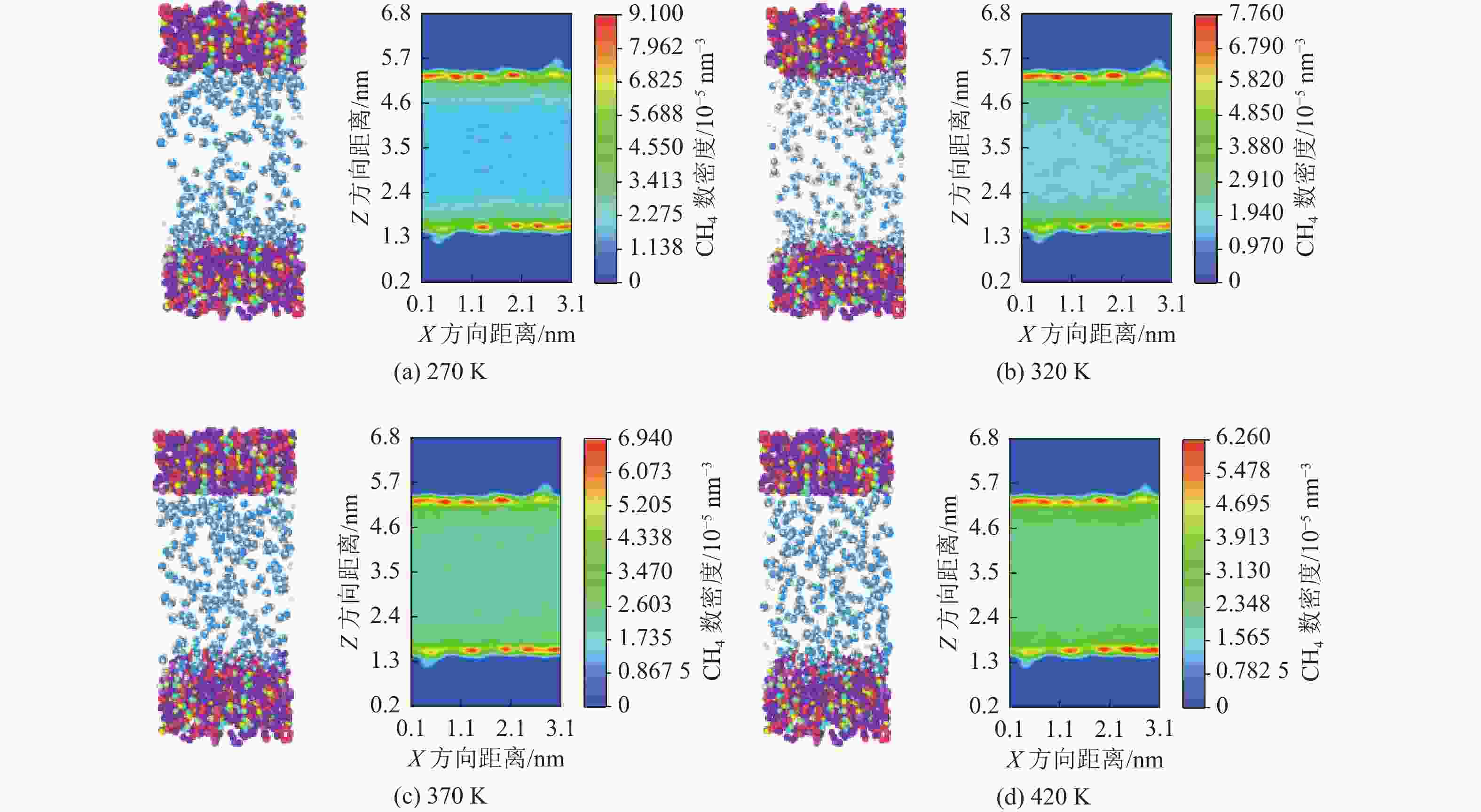

图 14 不同压力下甲烷的质量密度与运移速度分布
Fig. 14 Mass density and flow velocity distribution of methane under different pressures

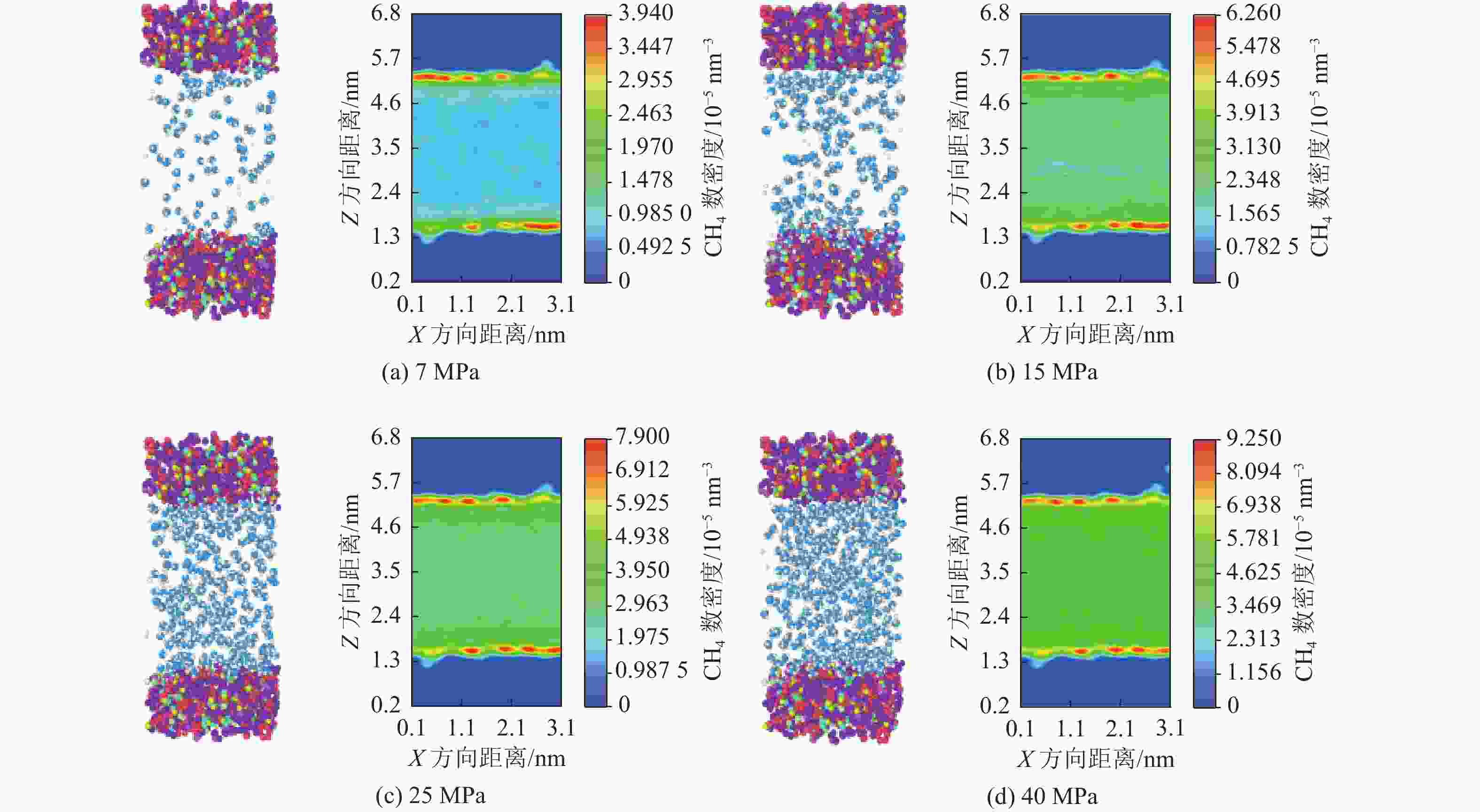

图 15 不同压力下甲烷数密度分布
Fig. 15 Number density distribution of methane under different pressures
表 1 不同压力下孔隙中甲烷数量和施加的驱动力
Table 1 Amount of methane in the pores under different pressures and the applied driving force
压力/MPa 甲烷数量 驱动力/[kcal·(mol·nm)−1] 7 100 0.012 15 200 0.006 25 300 0.004 40 400 0.003
下载: 导出CSV
-
